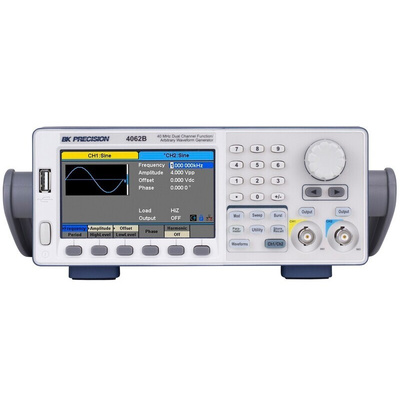

BK Precision BK4062B 4062B Arbitrary Waveform Generator

1978457
Номер производителя: BK4062BПроизводитель: BK Precision
Цена за шт.
310554.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

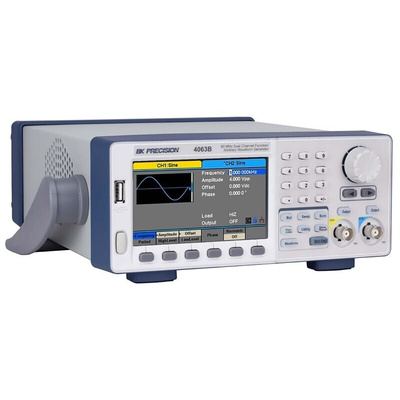

The BK4060B Series Dual Channel Function/Arbitrary Waveform Generators are capable of generating stable and precise sine, square, triangle, pulse, and arbitrary waveforms. This series combines the cost saving benefits of DDS and true point-by-point arbitrary architectures to meet a wide range of applications that require high signal fidelity and low jitter arbitrary waveforms. Three models are available: BK4062B (40 MHz), BK4063B (80 MHz) and BK4064B (120 MHz).
With an easy-to-read color display and intuitive user interface with numeric keypad, these instruments offer plenty of features including linear/logarithmic sweep, burst mode, and variable DC offset. Generate custom arbitrary waveforms using the included application software, or select from the 196 built-in arbitrary waveforms.

300 MSa/s (DDS), 75 MSa/s (true point-by-point) arbitrary waveform generator
Up to 1.2 GSa/s sample rate for sine, square, triangle, and pulse waveforms
16-bit resolution, 8 Mpt arbitrary waveform length
Two independent channels with one button phase synchronization
Channel copy, track, and waveform combine functions
4.3-inch touch screen display
Linear and logarithmic sweep
AM/DSB-AM/FM/PM/PSK/FSK/ASK and PWM modulation types
Variable DC offset
Overvoltage protection
Internal/external triggering
Gate and burst mode
196 built-in predefined arbitrary waveforms
Frequency counter
LAN and USB device (USBTMC-compliant) with front panel USB host port
GPIB connectivity with optional USB-to-GPIB adapter (model AK40G)
LabVIEW drivers available

Техническая спецификация
pdfBK4060B Series Manual
pdfBK4060B Series Datasheet
Вес:
3.4кг
Входы:
Modulation In
Высота:
107.2мм
Длина:
295мм
Максимальная частота выборки:
1200Msps
Минимальная частота:
1 мкГц
Модель р:
4062B
Рабочая температура - максимальная:
+40°C
Рабочая температура - минимальная:
0°C
Развертка:
Линейный, Логарифмический
Размеры:
260.3 x 107.2 x 295mm
Разрешение:
4 знака
Сигналы произвольной формы:
Да
Тип дисплея:
4.3 in TFT
Тип интерфейса:
LAN, USB
Тип коннектора:
BNC
Ширина:
260.3мм
