BK4063B, BK Precision 4063B Arbitrary Waveform Generator, 1 μHz Min

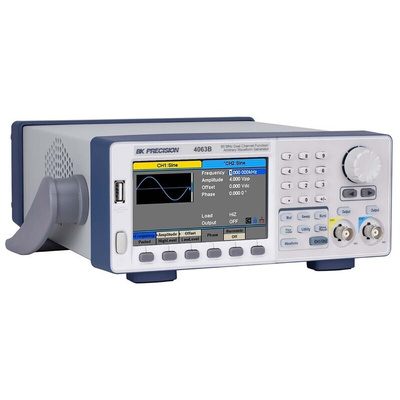

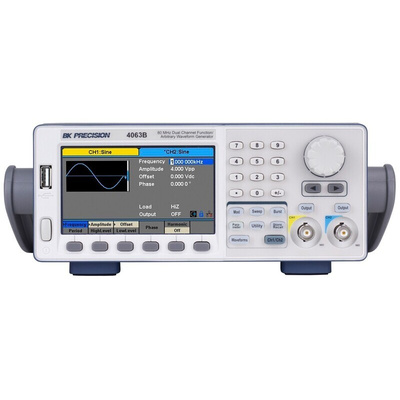

The BK4060B Series Dual Channel Function/Arbitrary Waveform Generators are capable of generating stable and precise sine, square, triangle, pulse, and arbitrary waveforms. This series combines the cost saving benefits of DDS and true point-by-point arbitrary architectures to meet a wide range of applications that require high signal fidelity and low jitter arbitrary waveforms. Three models are available: BK4062B (40 MHz), BK4063B (80 MHz) and BK4064B (120 MHz).
With an easy-to-read color display and intuitive user interface with numeric keypad, these instruments offer plenty of features including linear/logarithmic sweep, burst mode, and variable DC offset. Generate custom arbitrary waveforms using the included application software, or select from the 196 built-in arbitrary waveforms.

Features:

300 MSa/s (DDS), 75 MSa/s (true point-by-point) arbitrary waveform generator
Up to 1.2 GSa/s sample rate for sine, square, triangle, and pulse waveforms
16-bit resolution, 8 Mpt arbitrary waveform length
Two independent channels with one button phase synchronization
Channel copy, track, and waveform combine functions
4.3-inch touch screen display
Linear and logarithmic sweep
AM/DSB-AM/FM/PM/PSK/FSK/ASK and PWM modulation types
Variable DC offset
Overvoltage protection
Internal/external triggering
Gate and burst mode
196 built-in predefined arbitrary waveforms
Frequency counter

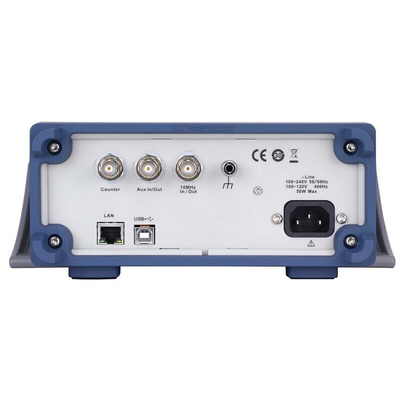

LAN and USB device (USBTMC-compliant) with front panel USB host port
GPIB connectivity with optional USB-to-GPIB adapter (model AK40G)
LabVIEW drivers available
