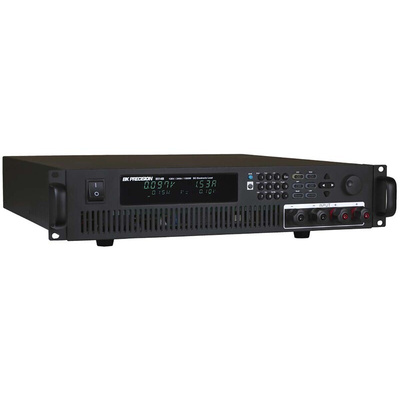

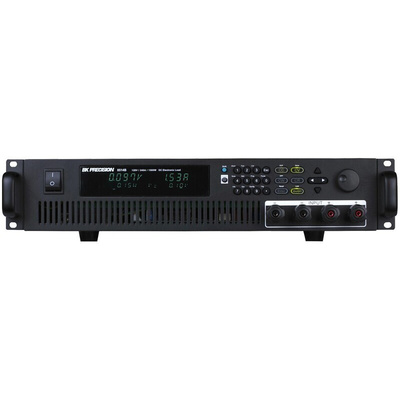

BK Precision Electronic Load, 8514B, BK8514B, 0 ￫ 240 A, 0 ￫ 120 V, 0 ￫ 1500 W, 0.5 ￫ 7500 Ω, Programmable

The BK8500B Series programmable DC electronic loads improve upon all aspects of its predecessor while maintaining dependability at a value price. This series supports both SCPI and the backwards compatible legacy protocol.
With a transient mode speed of up to 10 kHz and multi-type input terminals for banana plug or spade connectors, these DC loads are suitable for testing and evaluating DC power supplies, DC-DC converters, batteries, battery chargers, and photovoltaic arrays.

Maximum input power up to 1500 W
CC/CV/CR/CW operating modes
Transient mode up to 10 kHz in CC mode
16-bit voltage and current measurement system with up to 0.1 mV / 0.1 mA resolution
List mode and adjustable slew rate in CC mode
Short circuit test
Built-in battery test function with voltage level, capacity level, and timer stop conditions
CR-LED mode to simulate the loading behavior of typical LEDs
Remote voltage sensing to compensate for the effect of voltage drop in wires
Analog current control and monitoring
TTL (DB9) interface, includes TTL to USB adapter (models BK8542B, BK8500B, BK8502B, BK8510B)
USB and RS232 interfaces (8514B only)
OVP/OCP/OPP/OTP and local/remote reverse voltage (LRV/RRV) protection

BK8514B Series manual.pdf

BK8514B Series Datasheet
