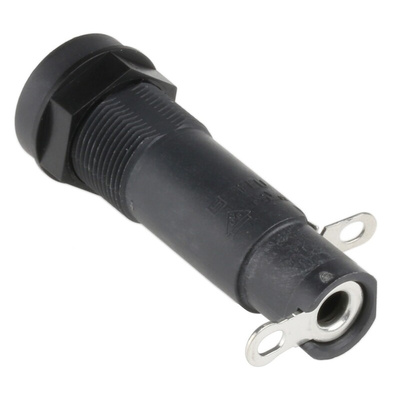

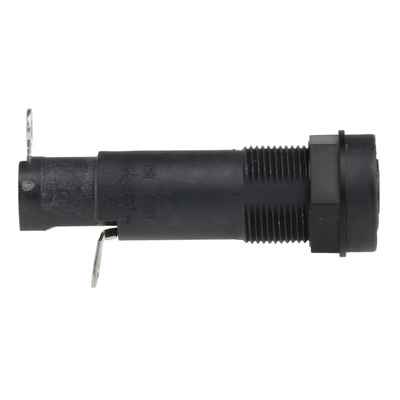

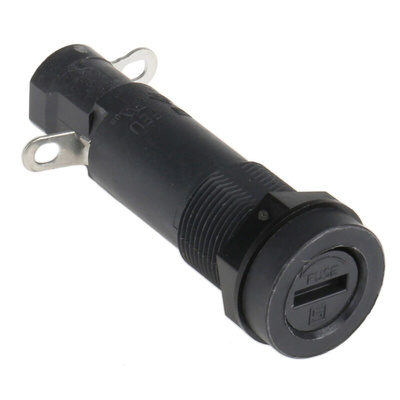

0031.1672, Schurter 20A Panel Mount Fuse Holder for 6.3 x 32mm Fuse, 250V ac, Держатель предохранителя

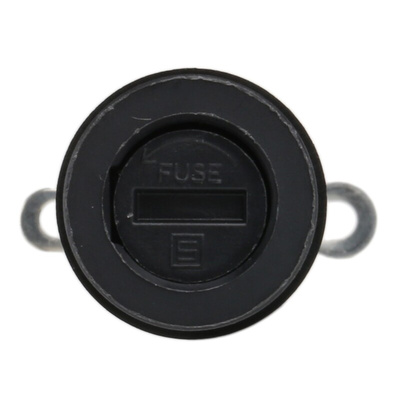

'SCHURTER' Bayonet Cap, Dual Standard

Fully inaccessible as defined in BS EN 60127-6
Thermoplastic Body

Approvals

VDE, SEV, SEMKO, UL, CSA,

Schurter FEU Series Slotted Panel Mount Fuse Holders

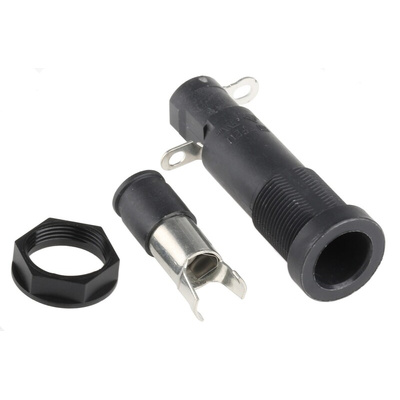

The Schurter FEU series 20A panel mount fuse holder offers current and voltage ratings of 20A and 250VAC respectively. This makes it ideal to use in harsh environments. The body of this holder is made of thermoplastic material and tin plated copper alloy is used for contact. It has captive type fuse carrier.

Features and Benefits

• Compatible fuse dimension is 6.3mmx32mm
• Low profile fuse holder with insulation walls
• Protection against electric shock
• Quick connect terminal type of 6.3mmx0.8mm

Applications

• Appliances in unattended use
• General circuit protection
• Vehicle electrical circuits

Certifications

• CSA certified
• IEC529 certified
• IP40 rated
• SEMKO approved
• SEV approved
• UL 4248-1 approved

Panel Mounting

CATEGORIES OF PROTECTION AGAINST ELECTRIC SHOCK,PC1: No integral protection against electric shock. If required, designers must provide additional protection against electric shock on equipment.,PC2: With integral protection against electric shock. Fuse-holders shall have live parts inaccessible to IEC529 standard test finger, when fully assembled, without fuse carrier or fuse in place and when fuse carrier, with fuse is being inserted or withdrawn.,PC3: With integral protection against electric shock. Fuse-holders shall have live parts inaccessible to IEC529 1mm diameter rigid test wire when fully assembled, without fuse carrier or fuse in place and when fuse carrier, with fuse is being inserted or withdrawn.

Datasheet
