FM26322122, Parker UCC Flowline Series Variable Area Flow Meter for Liquid, 5 L/min Min, 55 L/min Max

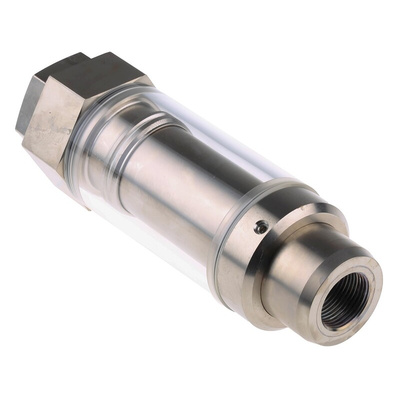

Parker UCC Flowmeter

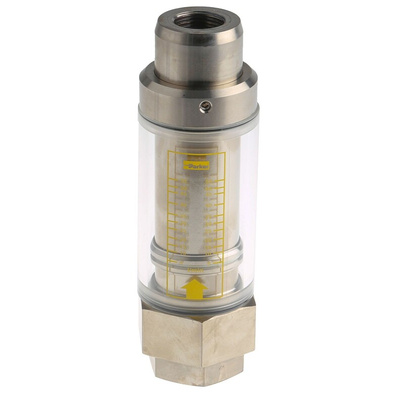

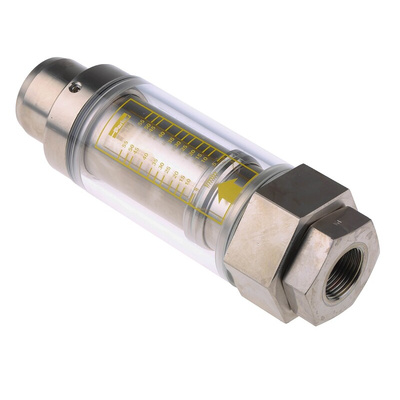

The Parker UCC Flowline series variable area flowmeter measures a liquid flow rate of 5L/min to 55L/min. This flowmeter has a graduated flow scale on the outer viewing sleeve. Also, has an indicator ring that magnetically coupled to an internal piston. It utilises the technique of differential pressure across a piston. As the flow increases, the piston moves against a calibrated spring. It can be installed on any plane.

Features and Benefits

Pipe diameter range is 3/4 in
Connection type is 3/4 BSP
Maximum operating temperature is 90°C

High-pressure
Pressures up to 350bar
Accuracy ±5% FSD
Repeatability ±1% FSD
Relatively insensitive to viscosity changes
Direct reading
Oil or water calibrated
Body material is brass
