RS PRO Digital Process Indicator for Current, Voltage, 71mm x 29mm

RS PRO Digital Process Indicator 77x35mm 10 – 30 V dc

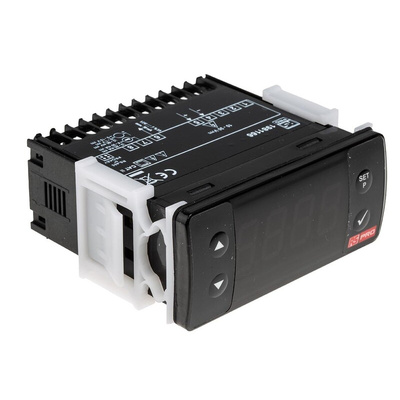

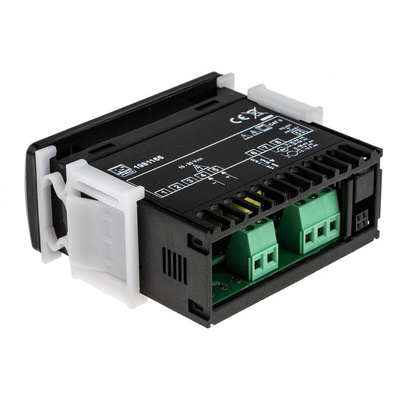

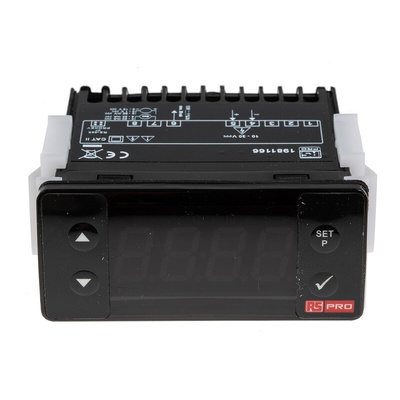

Introducing the RS PRO digital process indicator, a compact and robust single set process indicator ideal for panel mount installation in a range of applications to display measurements quickly and efficiently. The 4-digit display can be easily adjusted from the front panel and features an adjustable decimal for enhanced flexibility, providing you with clear and accurate measurements. The RS PRO digital process indicator allows you to display maximum and minimum values continuously and features an adjustable alarm set, which can be easily operated via the front panel. For enhanced security, the digital process indicator also includes programming mode password protection.

Features and Benefits

• 4 Digits display allowing for quick and easy reading of measurement


• Compact and robust design


• Easily adjustable front panel with use friendly interface


• Adjustable decimal point, input filter and alarm set value offering flexibility


• Programming mode password protection


• Alarm output


• Maximum or minimum measurement value can be shown continuously on the display


• IP65 protection on front panel and IP20 at rear

Applications

Digital Process Indicators are ideal for measuring the process value in a wide range of applications. They often feature easily adjustable front panels offering easy use, alarm output, universal process input properties and more. Digital process indicators are commonly used in areas such as:

• Automotive


• Industrial


• HVAC

FAQs

What is the IP rating?

The RS PRO digital process indicator features IP65 protection on the front panel and IP20 at the rear.

What are the dimensions?

77mm x 35mm x 62.5mm plastic housing for panel mounting. Panel cut-out is 71x29 mm.
