RS PRO ABS Hand Held Enclosure, Integral Battery Compartment, IP65, 130 x 68 x 25mm

RS PRO Plastic Hand Held Enclosures

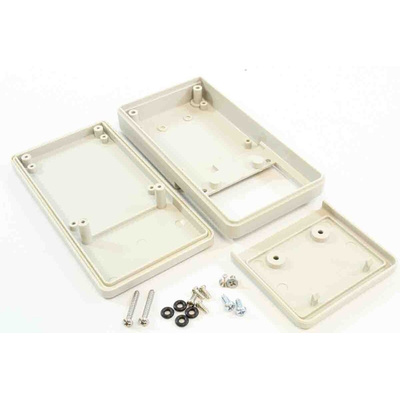

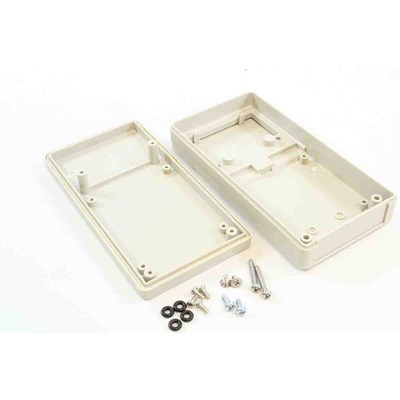

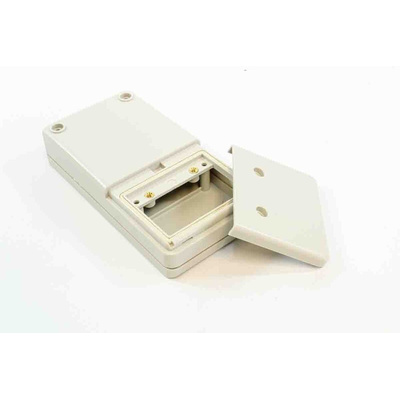

Introducing plastic hand held enclosures from RS PRO, a range of durable and versatile hand-held enclosures ideal for electrical applications requiring PCB (printed circuit board) mounting. The enclosures feature an ergonomically designed ABS construction that fits comfortably in the user’s hand, making it ideal for extensive hand held use. The enclosures are simple and easy to assemble, with a lap joint construction offering protection against dust accumulation and splashes of water. For enhanced protection against dust and water ingress, the enclosures are also available with gaskets offering IP65 protection. RS PRO hand held enclosures also feature integral moulded PCB standoffs, allowing them to be installed securely and efficiently with other electrical components.

Features and Benefits

• Available in either black or grey


• Available with gasket for enhanced protection from dust and water ingress or without for basic needs


• Integral PCB mounting standoffs for easily installation of components


• Lap joint construction for easy assembly and protection from internal dust accumulation


• Ergonomically designed to fit in the hand for comfort


• Moulded in a general purpose ABS plastic with a light texture (material carries a UL flammability rating of UL94 HB)


• The top half includes a smooth recessed area for membrane, label or silkscreen


• Easily assembled with M3 Philips self-tapping screws


• Available in a variety of sizes

Application

Hand held enclosures are used to house and protect various electrical components such as wires and PCB (printed circuit boards) in a wide range of hand held electrical devices. Hand held enclosures are manufactured from a variety of materials including ABS plastic and Aluminium, offering excellent protection from dust and water splashes as well as physical impact. Many hand held enclosure boxes feature battery compartments, keypad recesses and internal PCB mounts, ensuring easy assembly and installation of electrical components. Hand held enclosures are ideal for use in numerous areas such as:

• Medical


• Retail


• Engineering


• Data analysis


• Electrical test and measurement

FAQs

What options are available?

Without Gasket:

• 1981364 - RS PRO Black Hand Held Enclosure (without gasket), 130 x 68 x 25mm


• 1981365 - RS PRO Grey Hand Held Enclosure (without gasket), 130 x 68 x 25mm


• 1981368 - RS PRO Black Hand Held Enclosure (without gasket), 160 x 84 x 30mm


• 1981369 - RS PRO Grey Hand Held Enclosure (without gasket), 160 x 84 x 30mm

• 1981362 – RS PRO Black Hand Held Enclosure (with gasket), 130 x 68 x 25mm


• 1981363 – RS PRO Grey Hand Held Enclosure (with gasket), 130 x 68 x 25mm


• 1981367 – RS PRO Black Hand Held Enclosure (with gasket), 160 x 84 x 30mm


• 1981366 – RS PRO Grey Hand Held Enclosure (with gasket), 160 x 84 x 30mm

Are the enclosures waterproof?

The hand held enclosures with gasket included provide an IP65 rating, ensuring that they are protected from dust and water ingress and are suitable for use both indoor and outdoor. The enclosures without a gasket offer sufficient protection from dust and water splashes and are ideal for indoor use but are not waterproof.

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.

RS PRO Datasheet
