25102A15BVBN, Key Instruments FR2000 Series Variable Area Flow Meter, 1 L/min → 10 L/min

1983007
Номер производителя: 25102A15BVBNПроизводитель: Key Instruments
Цена за шт.
32907.00 руб. (С НДС) *
Количество 5+
Цена 31887.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

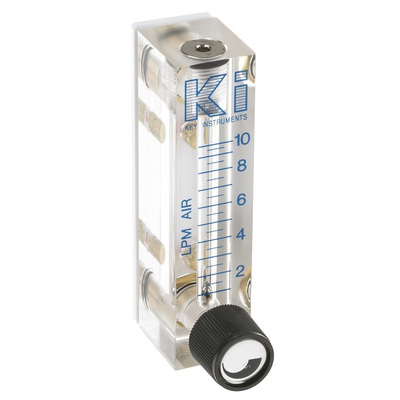

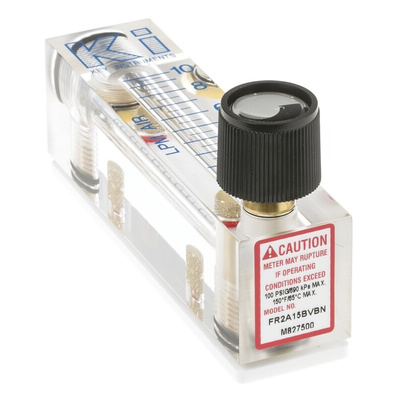

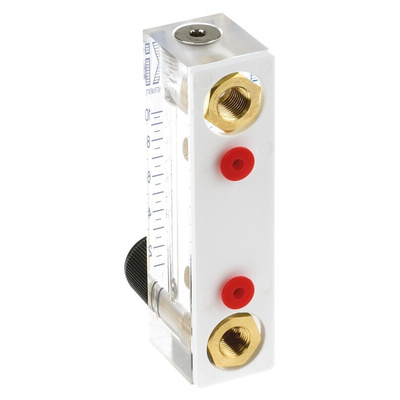

Key Instruments Flow Meter

The Key Instruments FR2000 series variable area flow meter measures the gas flow rate of 1L/min to 10L/min. This is a standard, precision-machined, acrylic flow meter for liquids or gases. It has direct-reading air or water scales and is available in either English or metric scales. This is a durable and affordable product that provides highly repeatable results. It can be configured with a control valve on the inlet. The fittings and the valve are specified in brass and the O-rings are provided with Buna-N. These precision-machined, 1-piece, acrylic-body blocks can handle demanding projects and mounting panels along with high durability. It is used for many non-corrosive, low-pressure air, water and gas flow applications.

Note:
Please ensure you have selected the correct gauge for air, gas, or water.

Features and Benefits

Pipe diameter range is 1/8 in
Connection type is 1/8 NPT female
Maximum operating pressure is 6.89bar
Maximum operating temperature is 65°C

Large scales are easy-to-read
Valve with positive stop stays in place under pressure
Rod guided float for stable measurements
Fitting, valve and O-ring options accommodate multiple applications
Multiple connection options for easier installation
Easy disassembly and assembly for maintenance
Durable 1-piece, clear, acrylic construction

Applications

Air sampling equipment aquaculture
Desalinisation equipment
Gas analysers
Medical systems
Photo processing equipment
Water treatment and distribution systems
Purge

Техническая спецификация
pdfDatasheet
Диапазон диаметра трубы:
1/8 in
Максимальная температура среды:
+65°C
Максимальное давление:
6.89бар
Максимальный рейтинг расхода:
10 Л/мин
Материал:
Акрил
Минимальная скорость потока:
1 Л/мин
Мониторинг информации:
Gas
Рабочая температура - максимальная:
+65°C
Серия:
FR2000
Соединение - тип:
1/8 NPT Female
Тип девайса:
Variable Area
