2510A2L10BVBN, Key Instruments FR2000 Series Variable Area Flow Meter for Liquid, 10 ccm Min, 100 cm³/min Max

Key Instruments Flow Meter

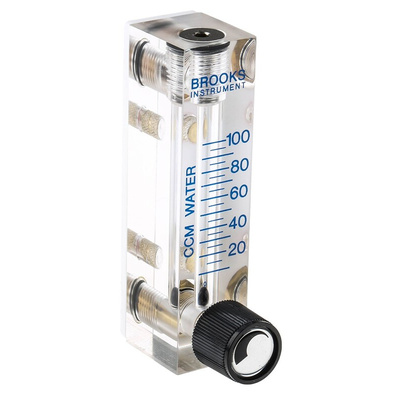

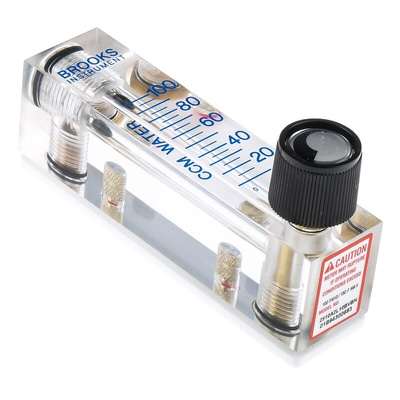

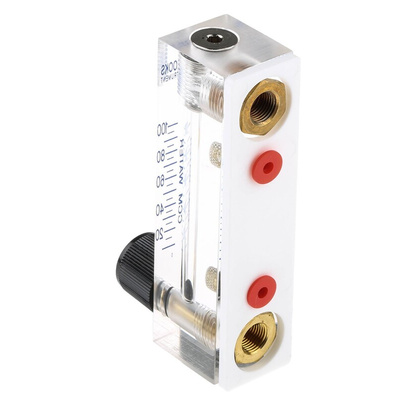

The Key Instruments FR2000 series variable area flow meter measures the liquid flow rate of 10 ccm to 100 cm³/min. This is a standard, precision-machined, acrylic flow meter for liquids or gases. It has direct-reading air or water scales and is available in either English or metric scales. This is a durable and affordable product that provides highly repeatable results. It can be configured with a control valve on the inlet. The fittings and the valve are specified in brass and the O-rings are provided with Buna-N. These precision-machined, 1-piece, acrylic-body blocks can handle demanding projects and mounting panels along with high durability. It is used for many non-corrosive, low-pressure air, water and gas flow applications.

Note:
Please ensure you have selected the correct gauge for air, gas, or water.

Features and Benefits

Pipe diameter range is 1/8 in
Connection type is 1/8 NPT female
Maximum operating pressure is 6.89bar
Maximum operating temperature is 65°C

Large scales are easy-to-read
Valve with positive stop stays in place under pressure
Rod guided float for stable measurements
Fitting, valve and O-ring options accommodate multiple applications
Multiple connection options for easier installation
Easy disassembly and assembly for maintenance
Durable 1-piece, clear, acrylic construction

Applications

Air sampling equipment aquaculture
Desalinisation equipment
Gas analysers
Medical systems
Photo processing equipment
Water treatment and distribution systems
Purge
