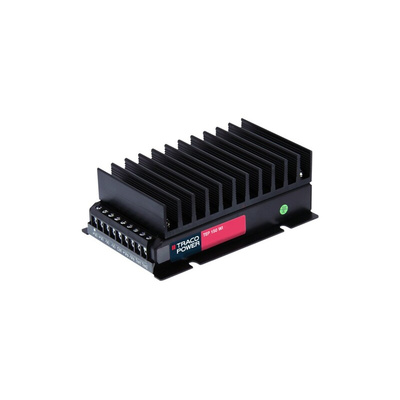

TEP 150-7212WI, TRACOPOWER TEP 150 DC-DC Converter, 12V dc/ 12.5A Output, 46 → 160 V dc Input, 150W, Chassis Mount, +75°C Max

Traco Power DC-DC Converter, 150W Power Rating, 65mm Width - TEP 150 Series - TEP 150-7212WI

Deliver a balanced power supply to your PCB-connected components with this DC-DC converter from Traco Power. It accepts an input voltage between 43 and 160V DC and steps it down to a stabilised output voltage of 12V DC. To keep sensitive equipment safe from damage, it also puts an isolation barrier of 2.25kV between the input and the output. The unit's shielded aluminium casing protects against external EMI and reduces internal noise to give you clear signal transmission. It also stands up to impact and corrosion, so you can use this device in harsh environments.

Features & Benefits

• IP55 rating means it has limited protection from dust and low-pressure water jets from any direction
• Quick start-up time of 35ms to get your equipment going quickly
• Efficiency of 88% means minimal energy is lost to heat
• Mean time between failures of 495,000 hours for long-lasting performance

Applications

• Process and packaging systems
• Industrial automation
• Security and surveillance equipment

What operating temperature range can this DC-DC converter withstand?

It has a broad operating temperature range between -40°C and +75°C, so it's suitable for use in demanding settings.

Datasheet - TEP 150-7212WI

Industrial Power Solutions Catalogue

Railway Solutions Catalogue

Selection Guide
