BZ-2RQ181M-A2, Honeywell Plunger Micro Switch, Screw Terminal, 16 A @ 250 V ac, SPDT, Микропереключатель

Heavy-duty Type (a) Microswitch

Available with a choice of actuators
Connection by screw and cup washer
Panel mounting types should be bush mounted using the supplied fixing nuts
The collapsible roller version operates in one direction only
Optional terminal cover has knockouts to provide a choice of wiring positions
Contact Rating; 15A @ 480Vac/28Vdc
Contact material; silver

Approvals

UL; CSA

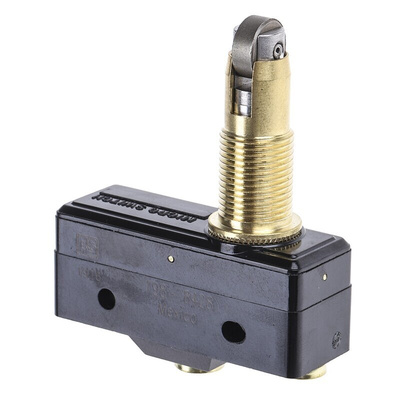

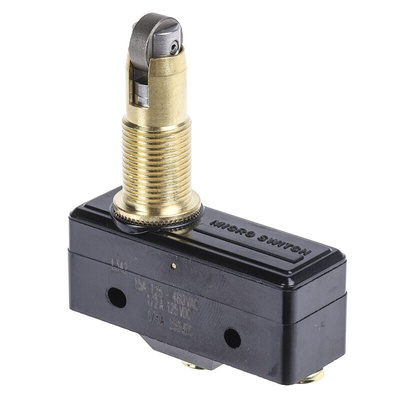

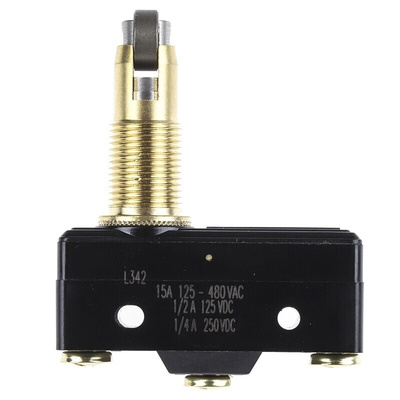

Honeywell Microswitch, Roller Plunger Actuator, 15A Current Rating - BZ Series - BZ-2RQ181M-A2

Looking for a reliable switching solution for your electrical devices? Choose this microswitch from Honeywell. It has a snap-action mechanism to quickly switch your circuits on and off for efficient operation. Thanks to its low operating force of 2.5 to 3.61N, this unit is highly sensitive for reliable performance. Its current rating of 15A makes it a good choice for use in high-power applications.

Features & Benefits

• Phenolic housing is resistant to impact and heat for use in harsh environments
• Wide operating temperature range between -55°C and +85°C for use in challenging environments

Applications

• Elevators
• Kitchen appliances
• Consumer electronics
• Safety systems

How does this microswitch work?

When the actuator of this microswitch makes contact with an object, it transmits a signal to the contacts that causes them to change position, energising or de-energising the electric circuit.

Approvals

UL; CSA
