RS PRO M8 x 1.25 Female Steel Rod End, 8mm Bore, 47mm Long, Metric Thread Standard, Female Connection Gender, Шарнирная головка

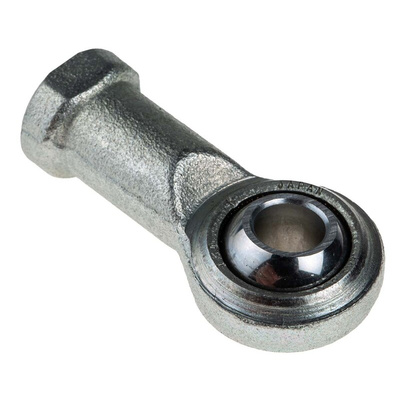

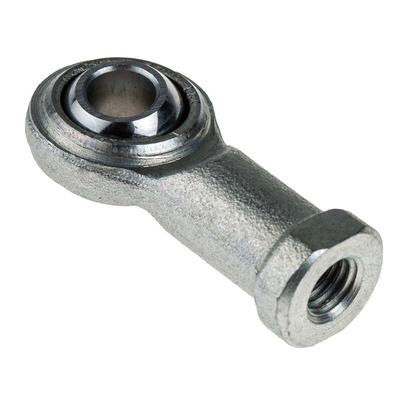

RS PRO M8 x 1.25 Female Steel Rod End, 8 mm Bore Size, 47 mm Long, M8 x 1.25 Thread Size, Metric Thread Standard Female

If you're building a pneumatic and coupler mechanism, this steel rod end from the reliable RS PRO range offers a zero-maintenance option, as it requires no lubrication.

The ball swivel allows some degree of misalignment between the shafts you're connecting. It has a female M8 x 1.25 connection thread with a bore size of 8 millimetres. The component's overall length is 47 millimetres and it has a dynamic load rating of 14,30 newtons and a static load rating of 7,900 newtons.

Part of the RS PRO series, the product has been stringently tested by our engineers. It also meets Electrostatic Control Standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007. This type of rod end is especially suitable for loading in one direction. It's the best choice for control and link mechanisms in machines where oil must be avoided, for example food processing machines or machines that can't be re-lubricated.

Features and Benefits

• Rod end
• Steel construction
• M8 x 1.25 female connections
• Bore size of 8 mm
• Overall length of 47 mm
• Dynamic load rating of 14,300 N
• Static load rating of 7,900 N
• Conforms to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS Pro Datasheet
