RS PRO M10 x 1.5 Female Steel Rod End, 10mm Bore, 56mm Long, Metric Thread Standard, Female Connection Gender, Шарнирная головка

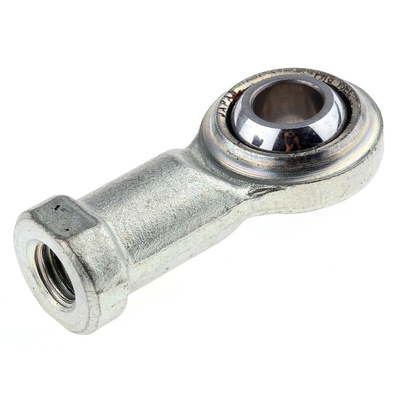

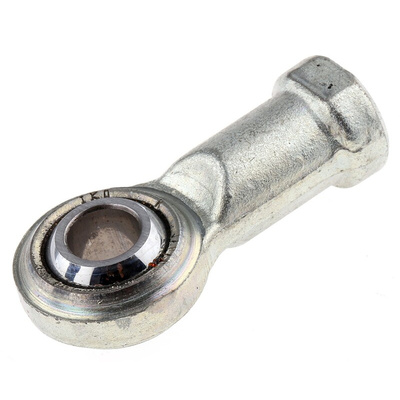

RS PRO M10 x 1.5 Female Steel Rod End, 10 mm Bore Size, 56 mm Long, M10 x 1.5 Thread Size, Metric Thread Standard Female

Use this steel rod end from RS PRO in pneumatic and coupler mechanisms. It's commonly used for printing and packing machinery, labelling machines or mechanical controls.

A rod end is a zero-maintenance option that requires no lubrication. It has an overall length of 56 millimetres, a dynamic load rating of 20,000 newtons and a static load rating of 10,700 newtons. The female thread connections have an M10 x 1.5 thread size and the bore size is 10 millimetres. It consists of a carbon steel body, high carbon bearing steel ball and a copper alloy insert.

Part of the reliable RS PRO series, this component has been exhaustively tested to ensure a high degree of durability and consistency. It also meets ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards for safe electrostatic discharge.

Features and Benefits

• Rod end
• Made from steel
• M10 x 1.5 female connections
• Metric connection thread standard
• Bore size of 10 mm
• Overall length of 56 mm
• Dynamic load rating of 20,000 N
• Static load rating of 10,700 N
• Conforms to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS Pro Datasheet
