RS PRO M8 x 1.25 Male Steel Rod End, 8mm Bore, 53mm Long, Metric Thread Standard, Male Connection Gender, Шарнирная головка

RS PRO M8 x 1.25 Male Steel Rod End, 8 mm Bore Size, 53 mm Long, M8 x 1.25 Thread Size, Metric Thread Standard Male

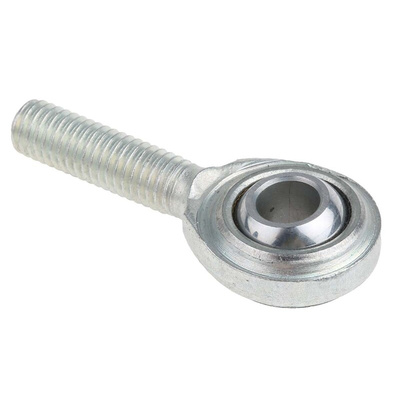

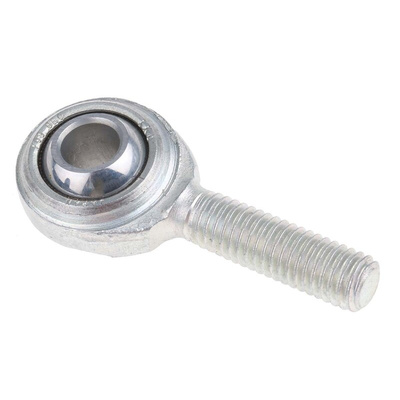

These male steel rod ends from RS PRO are a type of bearing commonly used in manufacturing machinery. They have a circular head with an opening and an attached threaded shaft and are used to connect steering links and other rods used in mechanical control.

The product is made from hardwearing steel with an M8 x 1.25 male connection size, 8 mm bore and 53 mm length. Rod ends like these are easy to maintain as there is no need for lubrication to improve performance. This means they are suitable for scenarios where you need to load in one direction. You can use them with machines where oil should be avoided such as food processors and other kitchen appliances.

The rod ends are suited for use with different heavy-duty loads. They have a dynamic load rating of 14300 N and a static load rating of 7900 N. You'll find them in boating and automotive applications.

Features and Benefits

• Male connection
• Steel material
• M8 x 1.25 male connection size
• Metric connection thread standard
• Bore size of 8 mm
• Overall length of 53 mm
• Static load rating of 7900 N
• Dynamic load rating of 14300 N

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS Pro Datasheet
