RS PRO M20 x 1.5 Male Steel Rod End, 20mm Bore, 101mm Long, Metric Thread Standard, Male Connection Gender, Шарнирная головка

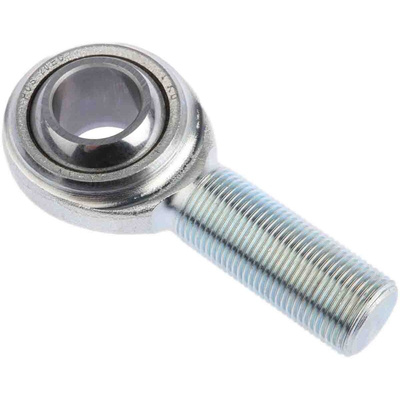

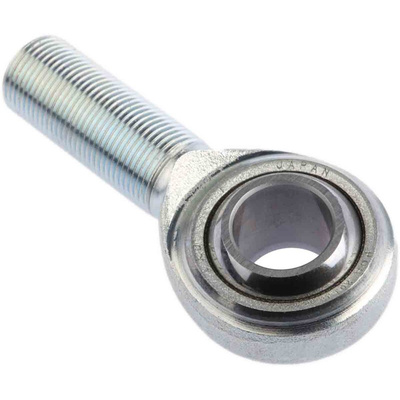

RS PRO M20 x 1.5 Male Steel Rod End, 20 mm Bore, 101 mm Long, Metric Thread Standard

Need to make a mechanical joint at the end of a static rod? This RS PRO rod end provides a precise connection point that adjusts to the alignment of the rod.
The part is maintenance-free, as it requires no lubrication to keep running smoothly. It's also extremely strong thanks to its steel construction. This means it's well-suited for industrial applications as it can withstand large amounts of force and heavy loads without breaking. You don't have to worry about friction affecting the rod's performance either, as steel is an excellent heat dissipator.

This rod end is suitable for use with pneumatic cylinders. You can also use it for mechanisms in mechanical controls as well as packing, labelling and printing machines.

Features and Benefits

• Bore size of 20 mm


• Male connection gender


• M20 x 1.5 male connection size


• Metric connection thread standard


• Dynamic load rating of 62900 N


• Steel material


• Overall length of 101 mm


• Static load rating of 30500 N

RS Pro Datasheet
