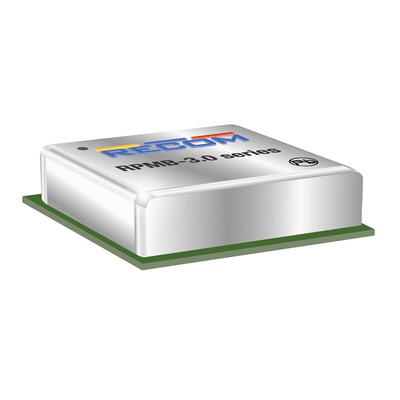

RPMB3.3-3.0-CT, Recom RPMB-3.0 DC-DC Converter, 3.3V dc/ 3A Output, 4 → 36 V dc Input, 2W, Surface Mount, +100°C Max Temp -40°C

RECOM DC-DC Converter, 4 to 36V DC Input Voltage Range, 9V DC Maximum Output Voltage - RPMB-3.0 Series - RPMB3.3-3.0-CT

Plug into the right power supply with this DC-DC converter from RECOM. It changes different inputs, ranging between 4 and 36V DC, into the correct output to run your applications efficiently. This means reduced equipment downtime and fewer hours spent on maintenance. A small profile of 12.2 (L) x 12.2 (W) x 3.75mm (H) makes fitting it in confined spaces a breeze. Although the unit has a compact LGA footprint, it still packs a punch with features such as on/off controls and adjustable outputs.

• Six-sided shielding stops electromagnetic interference from tripping up your power supply
• 94% efficiency means it delivers reliably
• Efficient heat control keeps the unit cool without external air conditioning
• Wide operating temperature range between -40°C and +100°C for use in demanding conditions

Applications

• Telecommunications systems
• Industrial equipment
• Consumer electronics
• Renewable energy plants
• Smart lighting applications

The Recom Power RPMB-3.0 series is a 3A non-isolated SMD switching regulator power module. It has input voltage up to 36V. It offers adjustable output from 1V up to 24V. It has an efficiency of up to 94% which remains nearly constant over a 5% to 100% load range. The device can operate at temperatures as high as +100°C without forced air cooling.

How do I mount this DC-DC converter?

36V 3A SMD power module
-40°C to +100°C with derating, convection cooled
Efficiency up to 94%
6-sided shielding
Thermally enhanced 25 pad LGA package

This is a surface-mount device, so setting it up is speedy and simple.

What output voltages can I get from this converter?

The unit has one output and achieves stable voltages between 1 and 9V DC.

Datasheet - RPMB3.3
