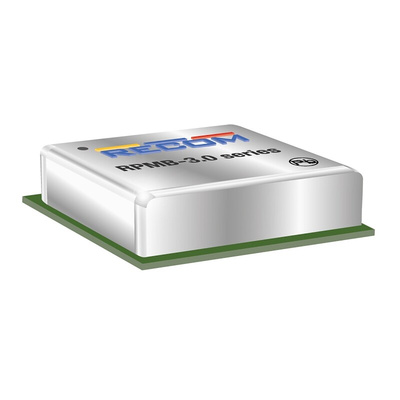

RPMB5.0-3.0-CT, Recom RPMB-3.0 DC-DC Converter, 5V dc/ 3A Output, 5.5 → 36 V dc Input, Surface Mount, +100°C Max Temp -40°C Min

RECOM DC-DC Converter, 1 to 9V DC Output Voltage Range, 88% Conversion Efficiency - RPMB-3.0 Series - RPMB5.0-3.0-CT

Need to make your electrical source compatible with your industrial devices? This DC-DC converter from RECOM accepts input voltages between 5.5 and 36V, letting you adjust many standard power supplies to work with your system. With an adjustable output voltage range between 1 and 9V, it provides effective power for common low-voltage appliances. The unit's six-sided shielding minimises the risk of disruption from high EMI levels to give you reliable power connections. As it starts up in 4.8ms, this is a fast-acting option that supports efficient operation.

Features & Benefits

• Low quiescent current of 36μA for minimal energy loss while deactivated
• Built-in overcurrent, over-temperature and short-circuit protection to limit damage from electrical faults
• Load regulation rating of 0.05% helps maintain a stable power supply even with input voltage changes
• Dimensions of 12.19 (L) x 12.19 (W) x 3.75mm (H) for easy mounting in crowded spaces

Applications

• Electric heating systems
• Renewable energy installations
• Manufacturing industry

Is this converter protected against impacts?

As this unit is protected by a robust metal case that gives it effective shock resistance, it's suitable for use in demanding conditions.

Datasheet - RPMB5.0
