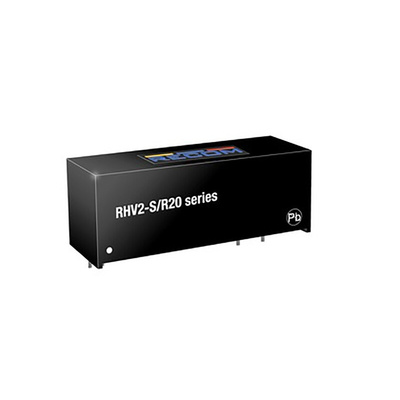

RHV2-2424S/R20, Recom RHV2 DC-DC Converter, 24V dc/ 84mA Output, 5 → 24 V dc Input, 2W, Through Hole, +85°C Max Temp -40°C Min, Преобразователь

RECOM DC-DC Converter, 200mV Pk-Pk Ripple and Noise, 20kV Isolation Voltage - RHV2 series - RHV2-2424S/R20

Keep your people and your kit safe using this isolated DC-DC converter from RECOM. It takes an input of 5 to 24V DC and outputs a steady 24V DC supply. This prevents voltage spikes from the input affecting the load. Thanks to a very high isolation of 20kV DC, it's suitable for use with high-voltage industrial applications. An operating temperature range of 40°C to +85°C means this converter is well suited to use in harsh industrial environments.

Features & Benefits

• Unregulated converter provides a constant amount of power
• Load regulation of 0.1 and line regulation of 0.012, with ripple and noise of 200 mV Pk-Pk, gives you a steady supply
• Compact SiP package measures 45 (L) x 15mm (W)
• Through-hole mounting style achieves a robust connection with your PCB

Applications

• X-ray equipment
• HVAC dust-extraction systems
• High vacuum monitoring

What's a SiP?

A SiP, or system-in-package, stacks several integrated circuits on top of each other. This enables designers to fit complex systems into a small footprint, saving you space when building your installation.
