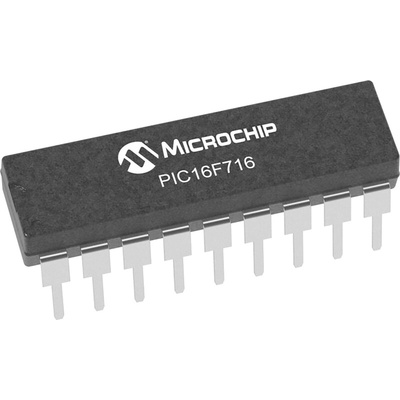

Microchip PIC16F716T-I/SO, 8bit PIC Microcontroller, PIC16F, 20MHz, 8 kB Flash, 18-Pin SOIC

The Microchip PIC16F716 8-bit CMOS microcontroller has PIC® architecture into an 18-pin package with A/D Controller and enhanced capture/compare PWM. It operates on 2V to 5.5V voltage range. This microcontroller features 4 channels of 8-bit Analog-to-Digital (A/D) converter with 2 additional timers and a enhanced capture/compare/PWM function that make it ideal for more advanced level A/D applications in automotive, industrial, appliances and consumer applications. It has 2048Bytes flash program memory and 128Bytes of SRAM.

Fully static design
High Sink/Source Current 25/25 mA
Power-on Reset (POR)
Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)
Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation
Dual level Brown-out Reset circuitry
Programmable code protection
Power-Saving Sleep mode
Selectable oscillator options
In-Circuit Serial Programming™ (ICSP™)
8-bit multi-channel Analog-to-Digital Converter
13 I/O pins with individual direction control
Programmable weak pull-ups on PORTB
Temperature range between -40°C and 85°C
SOIC package

Datasheet - PIC16F716T-I/SO
