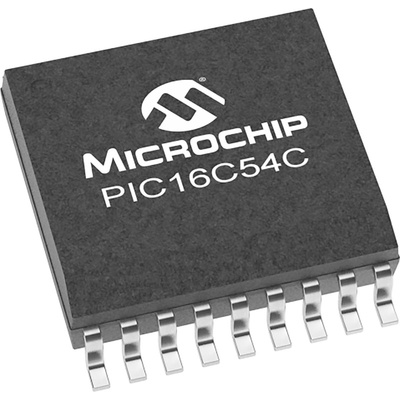

Microchip PIC16C54C-04I/SO, 8bit PIC Microcontroller, PIC16C, 20MHz, 8 kB Flash, 18-Pin SOIC

The Microchip PIC16C54C 8-bit CMOS microcontroller has a RISC architecture with only 33 single word/ single cycle instructions. It operates on 2.5V to 5.5V voltage range. All instructions are single cycle except for program branches which take two cycles. It delivers performance in an order of magnitude higher than its competitors in the same price category. The 12-bit wide instructions are highly symmetrical resulting in 2:1 code compression over other 8-bit microcontrollers in its class. The easy to use and easy to remember instruction set reduces development time significantly. It is supported by a full featured macro assembler, a software simulator, an in-circuit emulator, a low cost development programmer and a full featured programmer. It has features 18 pins, 12 I/O lines, 512Bytes EEPROM and 25Bytes RAM.

Low power, high speed CMOS EPROM/ROM technology
Fully static design
Frequency range of 4MHz
8-bit wide data path
Seven or eight special function hardware registers
Two-level deep hardware stack
Direct, indirect and relative addressing modes for data and instructions
8-bit real time clock/counter (TMR0) with 8-bit programmable prescaler
Power-on Reset (POR)
Device Reset Timer (DRT)
Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation
Programmable Code Protection
Power saving SLEEP mode
Low power consumption
Temperature range between -40°C and +85°C
300 mil SOIC package

Datasheet - PIC16C54C-04I/SO
