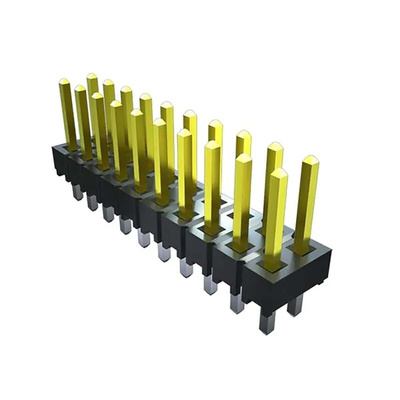

TSW-108-14-L-T, Samtec TSW Series Straight Through Hole Pin Header, 24 Contact(s), 2.54mm Pitch, 3 Row(s), Unshrouded

1

The Samtec TSW series is a through-hole .025” square post terminal strip which features single row, double row and triple row options with straight or right-angle pins in a variety of post heights and body positions. It is an Extended Life Product™, that passes 10 year Mixed Flowing Gas (MFG) and achieving high mating cycles (250 to 2,500). This Samtec terminal strip is industry's largest variety of standard pin counts, terminal length and options

Pitch: .100" (2.54 mm)
Contact System: .025" (0.635 mm) square post
Orientation: Vertical, right-angle
Termination: Through-hole

Datasheet - TSW-207-08-T-S-RA
