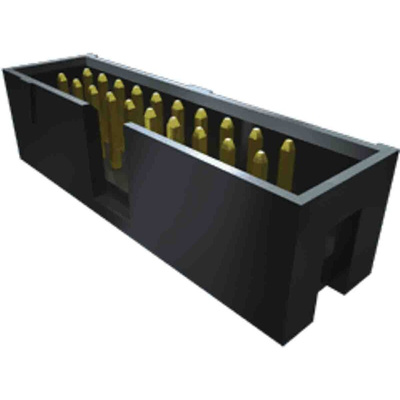

TST-112-01-G-D, Samtec TST Series Straight Through Hole PCB Header, 24 Contact(s), 2.54mm Pitch, 2 Row(s), Shrouded

The Samtec TST series is a shrouded terminal strip, cable mate. Insulating material is of black glass filled polyester. Terminals are of phosphor bronze. There are total 24 no. of contacts.

Insulation Resistance is 5000 MΩ min
Plating: Au or Sn over 50 μ" (1.27 μm) Ni
Current Rating (IDSD/TST): 3.4 A per pin (2 pins powered)
Operating Temp Range: -55 °C to +125 °C with Gold
-55 °C to +105 °C with Tin
Flammability Rating are of UL 94V-O
Voltage Rating upto 425 VAC/600 VDC
It is RoHS Compliant

Document - TST-113-01-L-D
