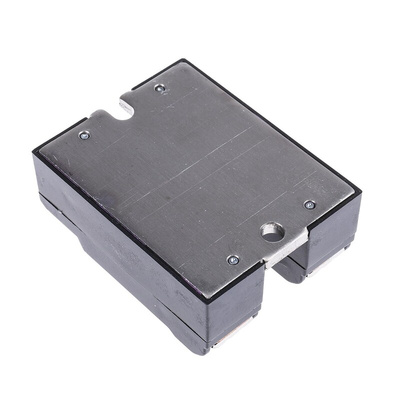

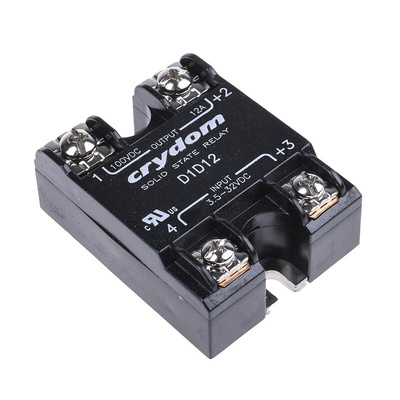

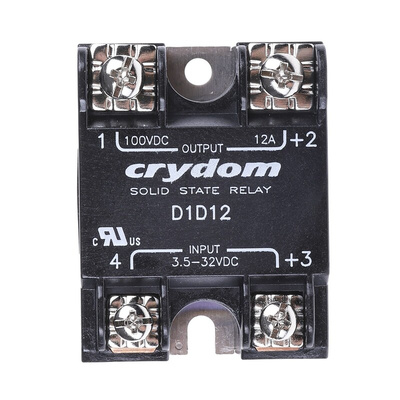

D1D12, Sensata / Crydom Solid State Relay, 12 A Load, Surface Mount, 100 V Load, 32 V Control, Реле

7 to 100A dc Switching

SSRs for controlling dc loads
Extremely long operating life
MOSFET technology relays can be connected in parallel to switch higher load currents
Applications include dc motors, lamps, solenoids
Terminal Type Screw; Saddle Clamp
Operating Temperature Range -30 to +80°C
Dimensions: H22.9 x W45.7 x D58.4
Max. Input to output Capacitance: 50pF
Panel Mount
Internal over voltage protection for the SSC Series

Note

Heat sink not included. For load current de-rating and heat sink details see manufacturers datasheet

Caution

Derating will limit the maximum load current at temperatures above 25 °C

Sensata | Crydom Solid-State Relay, 1 to 100V DC Operating Voltage, 1mA to 12A Load Current Range - 1-DC Series - D1D12

Quickly and reliably switch your DC loads with this solid-state relay from Sensata | Crydom. Its broad load current range of 1mA to 12A makes it suitable for use in a wide variety of applications. As there are no moving parts, there's reduced risk of wear for a long service life. The included SEMS fasteners make assembly quick and easy and help to firmly secure the device to your panel to prevent accidental disconnection. You can use this relay for motors, lamps and solenoids.

Features & Benefits

• Anti-rotation barriers on the housing keep the device in place
• Wide operating temperature range between -40°C and +100°C for use in harsh conditions
• Flame-retardant housing for safety in the event of a fire

How long will this solid-state relay last?

This component has an MTBF of more than 21 million hours at +40°C, so you can rest assured it will last a long time.

What's the operating voltage of this relay?

This relay has an operating voltage range of 1 to 100V DC for use in low-power systems.

Approvals

UL; CE; ISO

DC Switching

UL E116950

UL REC FOR CANADA E116950

Solid State Relay - CE-Declaration of Conformity

Datasheet

Declaration of Conformity 2014/35/EU

CE Declaration of Conformity (2014/35/EU, 2015/863/EU)

Installation Sheet - DC Output
