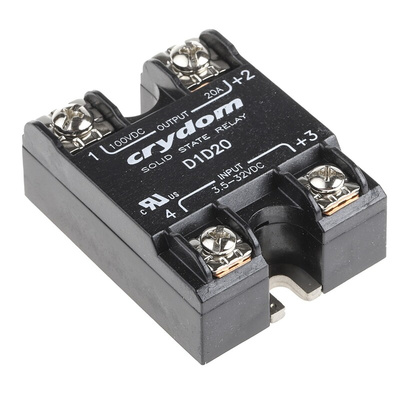

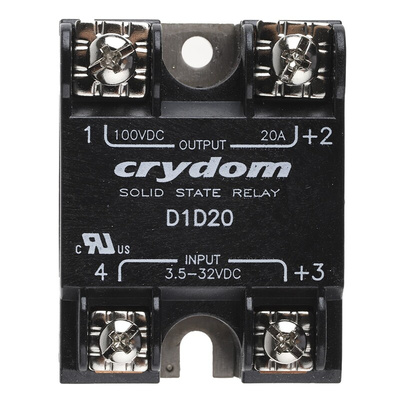

D1D20, Sensata / Crydom Solid State Relay, 20 A Load, Surface Mount, 100 V Load, 32 V Control, Реле

7 to 100A dc Switching

SSRs for controlling dc loads
Extremely long operating life
MOSFET technology relays can be connected in parallel to switch higher load currents
Applications include dc motors, lamps, solenoids
Terminal Type Screw; Saddle Clamp
Operating Temperature Range -30 to +80°C
Dimensions: H22.9 x W45.7 x D58.4
Max. Input to output Capacitance: 50pF
Panel Mount
Internal over voltage protection for the SSC Series

Note

Heat sink not included. For load current de-rating and heat sink details see manufacturers datasheet

Caution

Derating will limit the maximum load current at temperatures above 25 °C

Sensata | Crydom Solid-State Relay, Aluminium Baseplate, 1mA to 20A Load Current Range - 1-DC Series - D1D20

Turn the electric circuits in your machinery on and off using this solid-state relay from Sensata | Crydom. It switches the electrical signal to an optical form so it can be processed by the integrated transistor. As it doesn't use any physical contacts, there's minimal risk of mechanical wear. It's designed for panel mounting using screws for ease of installation. You'll typically find it used in sensitive devices like medical equipment.

Features & Benefits

• Broad load current range of 1mA to 20A for use in low and high-power systems

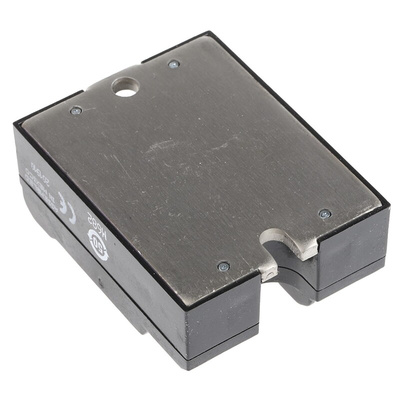

• Aluminium baseplate is resistant to corrosion and impact for durability
• Wide operating temperature range between -40°C and +100°C for use in challenging settings

How fast does this relay operate?

This relay has a maximum turn-on and turn-off time of 100μs, so you can rely on it for rapid switching.

How long will this solid-state relay last?

For long-lasting performance, this solid state relay has an MTBF of 21,395,130 hours at an ambient temperature of +40°C and an MTBF of 11,545,504 hours at an ambient temperature of +60°C.

Approvals

UL; CE; ISO

DC Switching

UL E116950

UL REC FOR CANADA E116950
