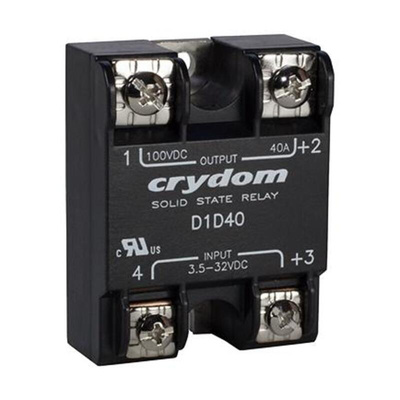

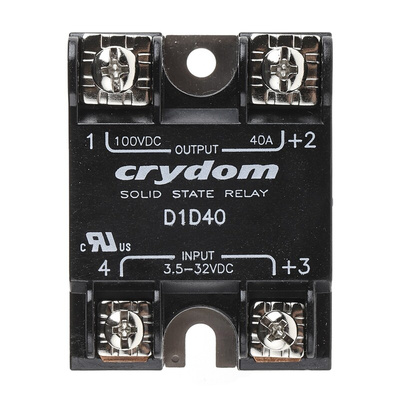

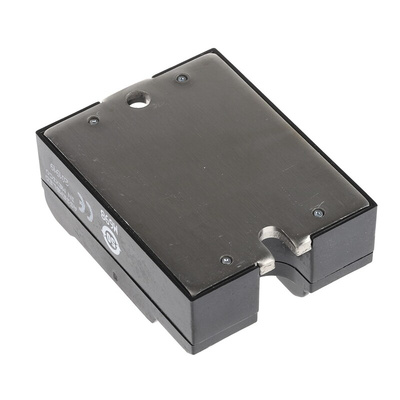

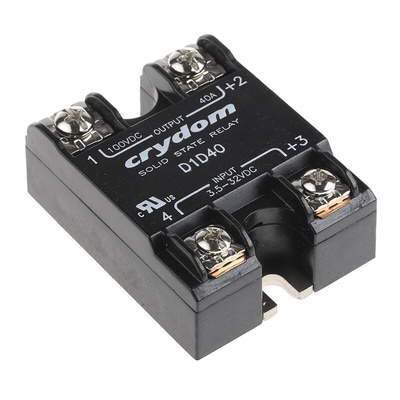

D1D40, Sensata / Crydom 1-DC Series Solid State Relay, 40 A Load, Surface Mount, 100 V Load, 32 V Control, Реле

7 to 100A dc Switching

SSRs for controlling dc loads
Extremely long operating life
MOSFET technology relays can be connected in parallel to switch higher load currents
Applications include dc motors, lamps, solenoids
Terminal Type Screw; Saddle Clamp
Operating Temperature Range -30 to +80°C
Dimensions: H22.9 x W45.7 x D58.4
Max. Input to output Capacitance: 50pF
Panel Mount
Internal over voltage protection for the SSC Series

Note

Heat sink not included. For load current de-rating and heat sink details see manufacturers datasheet

Caution

Derating will limit the maximum load current at temperatures above 25 °C

Sensata | Crydom Solid-State Relay, 40A Rated Load Current, Panel Mounting - 1-DC Series - D1D40

Switch DC loads in applications such as motors, lamps and solenoids with this solid-state relay from Sensata | Crydom. It has a rated load current of 40A, so it's suitable for use in heavy-duty applications. As it contains no moving parts, it requires little maintenance for an extended service life. Its panel-mounting style makes it simple to integrate into your existing system. Thanks to its compact dimensions of 44.5 (L) x 22.6 (W) x 57.3mm (H), it will take up minimal space on your panel.

Features & Benefits

• Can be connected in parallel to switch higher load currents
• Broad operating temperature range between -40°C and +100°C for use in harsh environments
• Internal overvoltage protection to prevent electrical damage

What are the differences between an SSR and an electromechanical relay?

An SSR has no moving parts, while an electromechanical relay does. SSRs often need heat sinks and fans to maintain the system at the required working temperature, while the alternative type has better thermal management. Electromechanical relays are more susceptible to interference from external magnetic fields.

Approvals

UL; CE; ISO

DC Switching

UL E116950

UL REC FOR CANADA E116950
