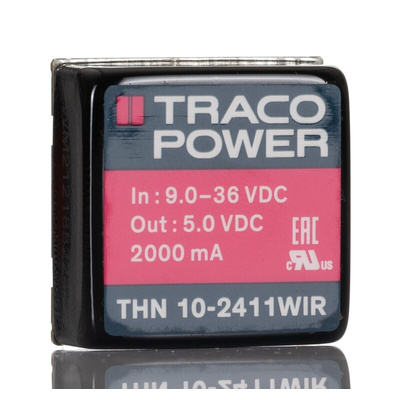

THN 10-2411WIR, TRACOPOWER THN 10WIR DC-DC Converter, 5V dc/ 2A Output, 9 → 36 V dc Input, 10W, Through Hole, +80°C Max Temp

Traco Power DC-DC Converter, Copper Housing, 320kHz Maximum Switching Frequency - THN 10WIR Series - THN 10-2411WIR

Need a compact power control solution for your PCB-linked components? Go for this DC-DC converter from Traco Power. It has dimensions of 25.4 (L) x 25.4 (W) x 9.9mm (D), so it's handy for applications where space is at a premium. An integrated filter smooths out ripple and noise, ensuring crystal-clear signal transmission. Thanks to an efficiency level of 87%, you can be sure the device loses minimal energy to heat, so there's no need for a heatsink in your setup. The non-conductive baseplate material provides insulation to protect you from electric shocks.

Features & Benefits

• Copper housing resists corrosion so it's reliable in humid settings
• Maximum switching frequency of up to 320kHz means high-speed response times
• Through-hole mounting for a firm, vibration-proof connection to your circuit board
• Mean time between failures of 2,334,000 hours for reliable long-term performance

Applications

• Rail industry
• Measurement and instrumentation devices
• Data and control centres

Does this device protect against surge voltage?

Yes, the converter creates an isolation barrier of up to 3kV DC between the input and the output signals. This prevents damage to your equipment caused by rogue spikes in current.
