1552D1BK, Hammond 1552 Series Black ABS Hand Held Enclosure, , IP54, 70 x 50 x 30mm

Hammond Handheld Enclosure, 70 (L) x 50 (W) x 30mm (H), 49mm Maximum PCB Length, Black Colour - 1552 Series - 1552D1BK

Shelter compact instruments from industrial contaminants in this handheld enclosure from Hammond. It's ideal for small-scale PCBs as compatible stand-offs are built into the lid and compartment, so set-up is swift and straightforward. The container is made from tough ABS to withstand rough treatment and shrug off damage from chemicals or fluids. In the package, you'll find a box, lid, two panels and four cover screws so you can get set up in a jiffy.

Features & Benefits

• Space-efficient dimensions of 70 (L) x 50 (W) x 30mm (D) means it's easy to handle
• Flame-retardant material self-extinguishes in less than 10 seconds in the event of a fire
• Inbuilt recess provides convenient space for a keypad
• IP54 rating demonstrates it's partially protected from dust and withstands water splashes from all directions

Applications

• Measurement and instrumentation devices
• Environmental monitoring
• Industrial controllers

How much does this enclosure weigh?

It tips the scales at just 36g, so even when you've added your device, the enclosure is a breeze to hold. If you want to hand it on a wall, use the compatible holder (200-6046).

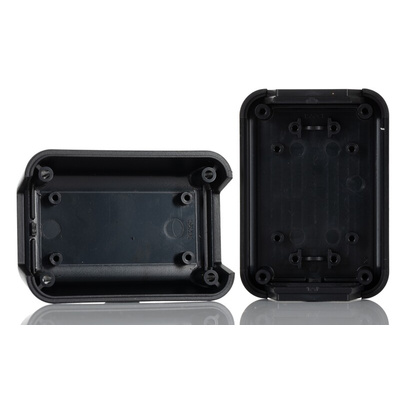

PCB Stand offs moulded into base and lid. Top cover is recessed for membrane display or keypad. Removable end panels for easy machining

Standards

Material Flamability Rating: UL94-V0

Datasheet - 1552D1BK

Datasheet

Datasheet - 1552 Series
