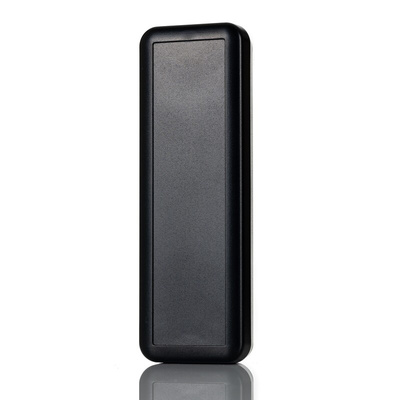

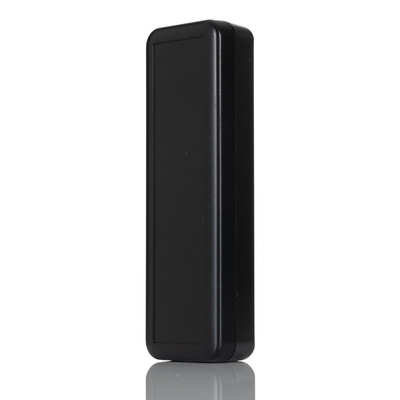

1552D5BK, Hammond 1552 Series Black ABS Hand Held Enclosure, , IP54, 150 x 50 x 30mm

Hammond Handheld Enclosure, 150 (L) x 50 (W) x 30mm (H), 144.5mm Maximum PCB Length, Black Colour - 1552 Series - 1552D5BK

Want to give reliable protection to portable electronic devices? Pop your components into this handheld enclosure from Hammond. PCBs fit like a glove, thanks to inbuilt stand-offs that ensure a secure fix and correct spacing. The unit's hard-wearing ABS body keeps contaminants at bay and withstands impacts to keep your gadgets out of harm's way. It only takes a screwdriver to drive the four cover screws home, so set-up is speedy. This makes it ideal for jobs where you need constant access, as you can assemble or disassemble the box in two ticks.

Features & Benefits

• Light 73g weight makes it easy to handle
• Takes a keypad, thanks to a top cover recess
• Self-extinguishing properties promote good fire safety
• Ergonomic dimensions of 150 (L) x 50 (W) x 30mm (H) sit neatly in your hand

Applications

• Field measurement and testing
• Communication devices
• Remote monitoring and sensing

Does this device resist dust?

An IP54 rating means the enclosure offers dust protection and resists water sprays from any direction, so you can use it in challenging settings.

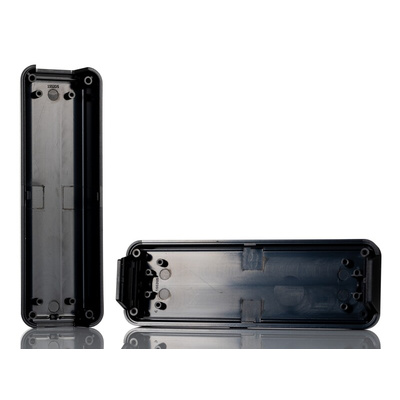

PCB Stand offs moulded into base and lid. Top cover is recessed for membrane display or keypad. Removable end panels for easy machining

Standards

Material Flamability Rating: UL94-V0

Datasheet - 1552D5BK

Datasheet

Datasheet - 1552 Series
