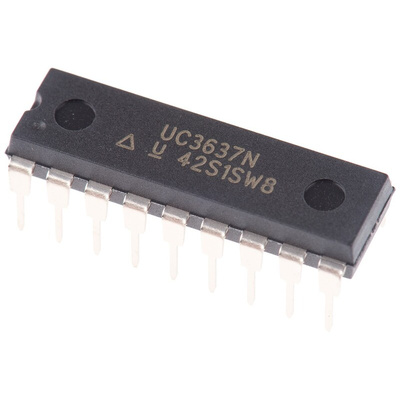

Texas Instruments UC3637N, BLDC Motor Controller, 36 V 0.1A 18-Pin, PDIP

Motion/Motor Controllers, Texas Instruments

The Texas Instruments UC1637 is a pulse width modulator circuit intended to be used for a variety of PWM motor drive and amplifier applications requiring either Uni-directional or bi-directional drive circuits. When used to replace conventional drivers, this circuit can increase efficiency and reduce component costs for many applications. All necessary circuitry is included to generate an analog error signal and modulate two bi-directional pulse train outputs in proportion to the error signal magnitude and polarity.

Single or Dual Supply Operation
±2.5V to ±20V Input Supply Range
±5% Initial Oscillator Accuracy
±10% Over Temperature
Pulse-by-Pulse Current Limiting
Under-Voltage Lockout
Shutdown Input with Temperature Compensated 2.5V Threshold
Uncommitted PWM Comparators for Design Flexibility
Dual 100mA, Source/Sink Output Drivers
