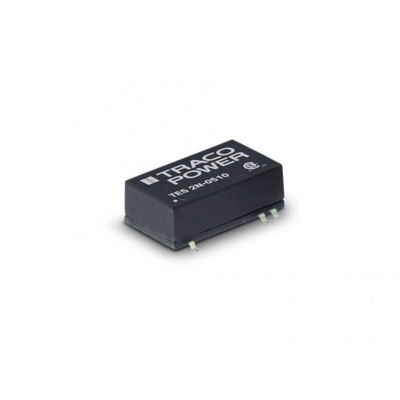

TES 2N-2410, TRACOPOWER TES 2N DC-DC Converter, 3.3V dc/ 500mA Output, 18 → 36 V dc Input, 2W, Surface Mount, +85°C Max Temp

Traco Power DC-DC Converter, SMD Package Type, 1.5kV DC Isolation Voltage - TES 2N Series - TES 2N-2410

When you need your DC-DC converter to keep a low profile, choose this compact device from Traco Power. It has dimensions of 24 (L) x 13.7 (W) x 9mm (H) to save you space on your PCB. This isolated converter takes a 24V DC supply voltage and reduces it down to 3.3V DC to work with standard computer chips and drives. The ripple and noise are no higher than 50mVp-p to maintain voltage levels. Thanks to short-circuit protection and a built-in EMI filter, you can be sure this converter is reliable.

Features & Benefits

• 1.7W rating to avoid draining your power
• Standard SMD package for simple surface mounting
• Phosphor bronze pins are strong and conductive to create a dependable connection
• Wide operating temperature range between -40°C and +85°C, to handle demanding environments

Applications

• Portable equipment
• Instrumentation
• Telecommunications
• Industrial computing
• Electronics

What's the input ratio of this DC-DC converter?

A 2:1 ratio gives this DC-DC converter an input voltage range between 18 and 36V DC. This makes it easy to match it to your supply voltage.
