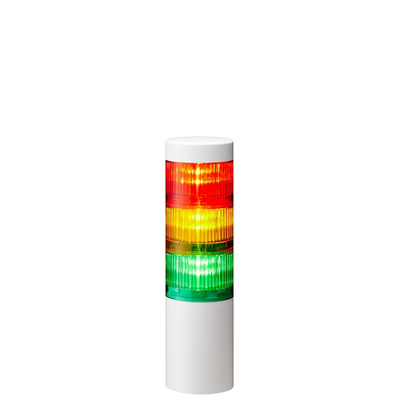

LR6-3ILWMNW-RYG, Patlite LR6-IL Series Coloured IO-Link Signal Tower, 3 Lights, 24 V dc, Direct Mount

2008578
Номер производителя: LR6-3ILWMNW-RYGПроизводитель: Patlite
Цена за шт.
68523.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

The Patlite LR6-IL IO-Link signal tower visualizes sensor information. Corresponding to the worldwide-standardized IO-Link technology, this signal tower enables you to communicate with sensors and actuators. The M12 connector makes installing and replacing easy. The visual information is customizable by choosing up to 5 LEDs in coloured LED units or one multicolour unit. With a protection rating of IP65, the LR6-IL is suitable for use in areas with splash water and dust. In addition to the visual information, a buzzer with 84 dB and 4 alarm sounds supports you in triggering the correct response in case of a detected abnormality.

Features & Benefits of this IOLink signal tower:
Preconfigured with 3 LEDs: Red, Amber, Green
Base diameter: 60 mm
White body
Direct mount
M12 Connector
Buzzer unit with 84 dB can be purchased separately
Light effect: Permanent/ Flashing

Техническая спецификация
pdfDatasheet - LR6-3ILWMNW-RYG
Вид монтажа:
Direct Mount
Высота:
271мм
Диаметр основания:
60мм
Количество световых элементов:
3
Компонент источника звука:
No Sounder Component
Лампа - тип:
Светодиодная
Максимальная температура:
+50°C
Многофункциональность:
Да
Напряжение питания:
24 В пост. тока
Световые эффекты:
Вспышка, Стабилизация
Серия:
LR6-IL
Соединение - тип:
M12 Разъем
Степень защиты IP:
IP65, NEMA TYPE 4X, 13
Цвет корпуса:
Белый
Цвет линзы:
Coloured
Цвет светодиода:
Красный/Желтый/Зеленый
