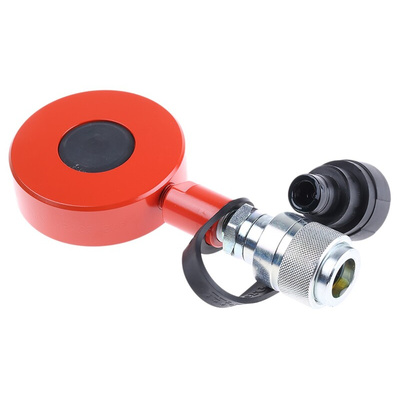

Hi-Force Single, Portable Low Height Hydraulic Cylinder, HVL10, 10t, 6mm stroke, Цилиндр

Very Low Height Cylinders

Very low height cylinders combine minimum closed height with maximum stroke to provide a short adjusting and lifting force in very confined work areas
All cylinders have a 6mm stroke and are manufactured to the same high standards as our existing range of cylinders

Warning

Safety Note - High pressure hydraulic equipment can work at extremely high pressures and careful attention should be paid to working pressures when choosing accessories.

Low Height Cylinders

High quality single acting, spring return cylinders, manufactured from high strength alloy steels, and providing a minimum safety factor of 3:1
Piston rods are chrome plated to prevent corrosion and the use of pressure activated anti-extrusion seals, enhance performance and reliability
Heavy duty return springs, assist single acting pistons to retract fully. Steel stop rings further increase a cylinders capacity to withstand side loads and restrain the piston at full extension
All port connections are 3/8 in. NPT and each cylinder is fitted with a high flow, quick release, female half coupler as standard
All cylinders are individually tested to 125% of their working pressures and are issued with a manufacturers test certificate, and instruction leaflet
The capacities of all our range of high pressure cylinders are specified at a working pressure of 700 bar
For suitable oil see technical specification of Hydraulic Hand Pumps
Maintenance seal kits are available separately

HVL Single Acting Low Height Pancake Cylinders

Drawing
