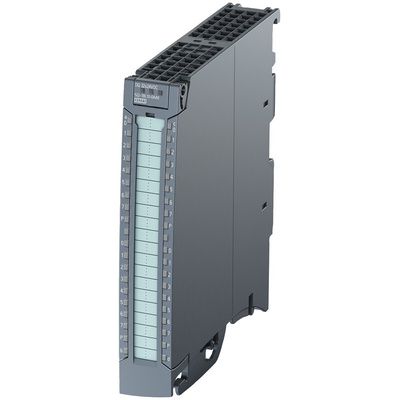

6ES7522-1BL10-0AA0, Siemens SIMATIC S7-1500 Series PLC I/O Module, Transistor Output

Siemens PLC Digital Output Module, 32 Channels, For Use With SIMATIC S7-1500 Series - 6ES7522-1BL10-0AA0

Working with data points in the field? Take control over your connections by using this PLC digital output module from Siemens. It covers 32 output channels arranged in groups of eight, so you can keep an eye on numerous machines at once. This module operates as part of the wider SIMATIC 7-1500 modular design, enabling scalable automation for all your industrial processes. The unit includes short-circuit protection with a fast response threshold at 1A. With a push-in connector included, you can plug this module into your PLC in a flash.

Features & Benefits

• Boost safety on the job by shutting down load groups up to SIL2
• IP20-rated, so protected against damage from small objects and debris bigger than 12mm
• Body dimensions of 25 (W) x 147 (H) x 129mm (D) slip easily into busy setups
• LED indicator makes errors easy to spot and reduces downtime
• Low power loss of 3.8W helps improve efficiency by cutting energy consumption

What supply voltage does this module need?

The unit's rated DC value is a standard 24V, with a lower limit of 20.4V and an upper limit of 28.8V DC.
