RS PRO Magnifier, 7X x Magnification, 25mm Diameter, Увеличительное стекло

Graticule

These are suitable for measurement of angles, linear dimensions, hole sizes and grid sizes depending upon the scale fitted. Each magnifier has a No. 2 scale fitted to the base of the acrylic drawtube as standard. Other scales (scales only), available separately, can be interchanged to give the required measurement, see scale No. 1 to 4 specifications.

No.1 Scale RS 200-9431
No.2 Scale RS 200-9447
No.3 Scale RS 200-9453
No.4 Scale RS 200-9469

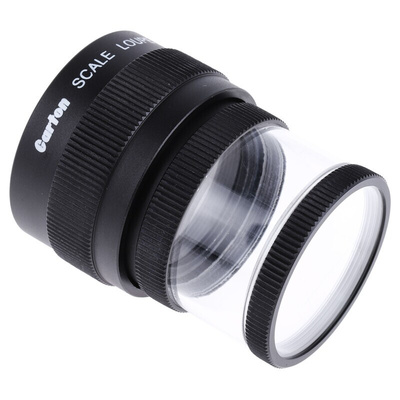

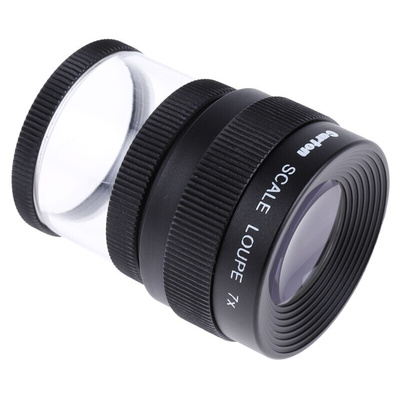

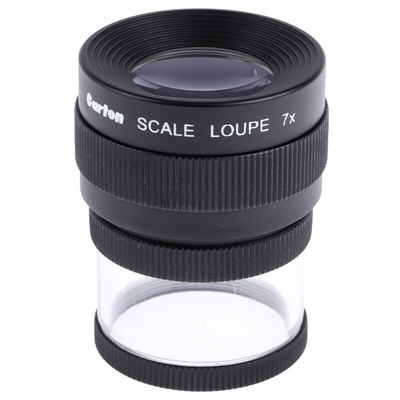

RS PRO Surface Contact Magnifier x7

From RS PRO this lens can offer magnification of x7, making objects sharper to the human eye and the ability to see more intricate details. They are ideal for measurements of angles, linear dimensions, hole sizes and grid sizes dependant on the scale fitted.

Each magnifier is fitted with a No.2 scale as standard, which fits onto the base of the drawtube and can clearly be seen through the eyepiece. However, these scales can be interchanged to give you the flexibility of having the correct measuring scale required, the scales 1 to 4 are listed.

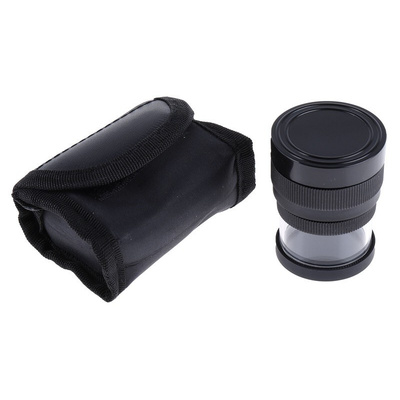

These high quality, scale loupes are designed for a variety of applications including printing, inspection and measurements. They are both light and portable and due to the interchangeable lens offer you flexibility. These eye glasses are supplied in a vinyl case for protection.

Features and Benefits

• Magnification power of x7
• Scale chart No.2 automatically fitted to base of the magnifier
• Interchangeable scales – No. 1 to 4
• 25mm lens diameter
• Fully coated magnifying optical glasses
• Perfect for measuring dimensions, angles and grid sizes
• Handheld magnifier
• Perfect to use with or without a light
• Ideal for providing eye relief

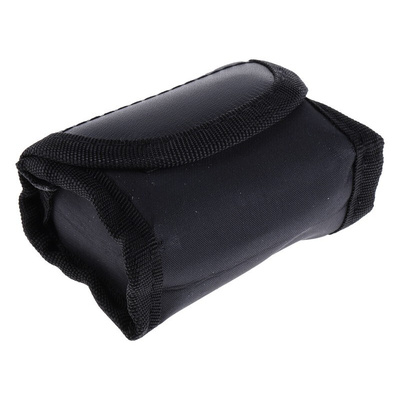

• Supplied in a vinyl case for protection

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.

RS Pro Datasheet
