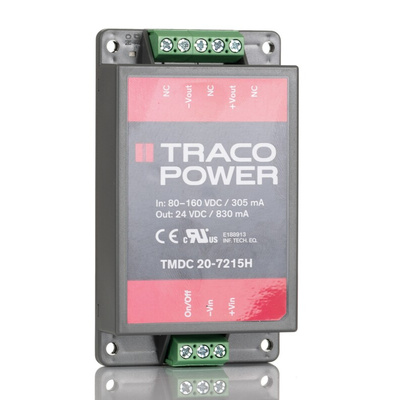

TMDC 20-7215H, TRACOPOWER TMDC 20H DC-DC Converter, 24V dc/ 830mA Output, 80 → 160 V dc Input, 20W, Chassis Mount, +95°C Max

Traco Power DC-DC Converter, 697,000h MTBF, 88% Efficiency - TMDC 20H Series - TMDC 20-7215H

Need to balance your circuit's power supply? Make sure a stable energy feed reaches your equipment with this DC-DC converter from Traco Power. It adjusts an input voltage between 80 and 160V DC, stepping it down to a smooth output of 24V DC. By putting a 3kV isolation voltage between the input and output, the unit helps prevent electrical incidents from sparking up and causing issues. With a mean time between failures of 697,000 hours, it stands up to the rigours of long-term power conversion.

Features & Benefits

• Fully encapsulated plastic housing helps with heat dissipation
• Power rating of 20W for safe operation in heavy-duty equipment
• Integrated input filters enable immunity up to EN 55035 standard to withstand EMI
• Typical start-up time of 30ms for swift conversion

Applications

• Automotive electronics
• Aerospace engineering
• IoT systems
• Energy industry

How efficient is this converter?

It has an 88% efficiency rating, which means it releases minimal energy waste, removing the need for a heatsink on your board.

What's the output adjustment range of this converter?

A voltage adjustment range of -2 to +2% lets you tweak the output to suit your setup exactly.
