RS PRO Boot for use with RJ45 Connectors, Манжета

RS PRO RJ45 Boot for use with RJ45 Connectors

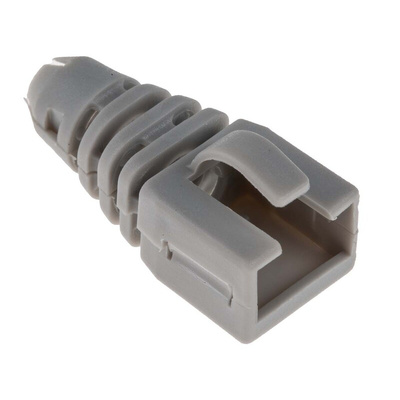

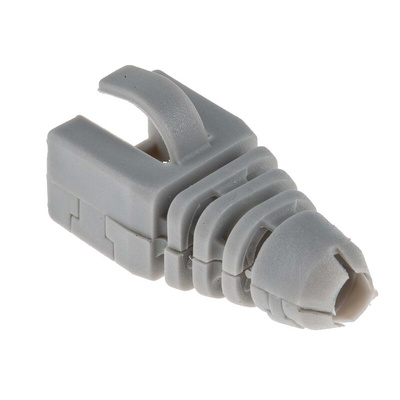

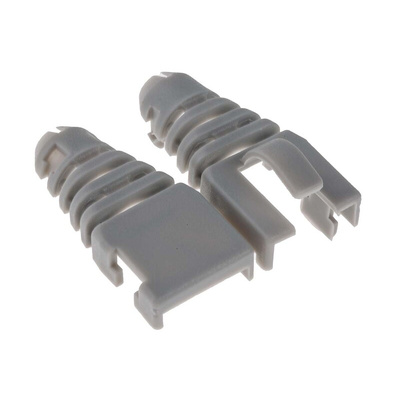

Looking for a quick and easy way to prolong the life of an already installed RJ45 cable assembly? This plastic strain relief hood from the RS PRO range can be fitted to a standard Ethernet data plug at any time. Simply snap the butterfly-style, one-piece moulding around the plug and cable to take the strain off the lead while also protecting the plug.

A cover extends out from the registered jack (RJ) connector hood to prevent the fragile plug latch deteriorating with wear and tear

Retrofitting strain hoods to your cables is an easy way to future-proof an existing patch cord installation. This hood is compatible with the RJ45 plug commonly used to connect computers to an Ethernet-based local area network (LAN).

The hood is RoHS certified as containing only minimal levels of hazardous substances, as well as being compliant with Electrostatic Control Standards (ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007).

Features and Benefits

• Strain relief hood for use with RJ45 connectors
• Prolongs the life of cable assemblies
• Length of 32.004 mm
• Depth of 12.7 mm
• Easy upgrade for existing installations
• Commonly used with ethernet cables
• RoHS compliant on hazardous substances
• Compliant with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards.

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS Pro Datasheet
