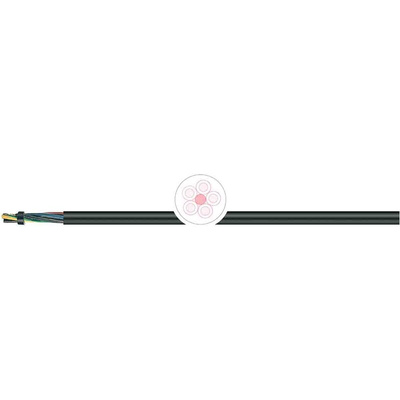

RS PRO 3 Core Power Cable, 4 mm², 100m, Black Elastomer Sheath, H07RNF, 25 A, 450/750 V

RS PRO H07RN-F Flexible Elastomer Insulated Mains Cable

Introducing the range of RS PRO Elastomer Insulated Mains Cables which are highly flexible and resistant to oil, weathering, UV exposure and mechanical stresses, making them ideal for use in extreme industrial or outdoor environments. The H07RN-F cable range consists of 2, 3 or 5 cores made up of fine stranded copper conductors or wires which is then surrounded by colour coded Elastomer, offering easy identification of wires. The cores are then surrounded by a final outer sheath of Elastomer insulation for added durability, making these cables extremely versatile across a range of applications.

Features and Benefits:

• This RS PRO flexible mains cable has 3 core strands with a total cable length of 100 mm, offering a low cost, durable solution for cabling applications


• Ideal for multi-purpose cable installations in difficult environments like industrial or outdoor applications


• It is a flexible cable with a durable black Elastomer protective sheath and stranded bare copper conductors


• The cable offers good insulation due to the Elastomer insulation material and installation is easy and efficient thanks to the coloured cores and layout of the cable


• Operating temperature: -40 °C to +60 °C (fixed)


• Operating voltage: 450/750 V

Applications:

Insulated mains cables are generally used for light to medium duty wiring in small to medium size appliances found in domestic, commercial and light industrial premises. These types of cables are mainly used on appliances that are indoors or in a covered, dry or humid area and where there is little risk of potential mechanical stresses and mechanical damage. However, there are also designs such as these RS PRO Elastomer insulated cables that offer protection in more extreme environments like outdoors or in industrial settings where it may be exposed to weathering, oil or lubricants, mechanical stress and UV exposure, ensuring durability and optimum performance in these severe conditions. Applications include the following:

• Computer and office equipment


• Kitchen appliances such as toasters


• Household appliances such as vacuum cleaners and washing machines


• Radios and music centres


• Table lamps and floor lamps


• Hairdryers

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.

Standards and Certifications:

• IEC 60228


• IEC 60228, Class 5


• IEC 60332-1 Flame Retardent


• EN 50525-2-21


• EN50575
