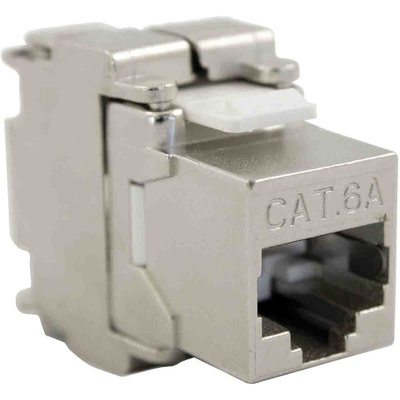

RS PRO Female RJ45 Connector, Tool-less Cable Mounting, Cat6a, 360° Shield

RS PRO Female RJ45 Coupler, Cat 6a

Introducing the RS PRO Female RJ45 coupler, a high-quality solution to network cable connections. The 360° shielded connector offers excellent electrical performance, ensuring good margins of NEXT for a Class Ea link. In addition to this, the wiring comb allows connection of the coupler without any tools, saving on valuable time and resource when setting the connection up. It offers clear and visible colour coding and a high-quality termination, while the low depth of the connector offers compatibility with mounting boxes.

Features and Benefits:

• This RS PRO Female RJ45 connector is suitable for Cat 6a ethernet applications and is compatible with RJ45 sockets


• The gold-plated bronze Platine contacts offer excellent contact ensuring high-quality performance


• It offers 360° shielding and a tool-less connection via the wiring comb, allowing for easy installation and no requirement or additional cost for specialised tooling


• Cycle insertion: 750 cycles/min

Applications:

RJ45 connectors are a standardized network interface for ethernet connections and are often used in LAN (Local Area Network) setups with UTP cabling. This coupler is used to construct RJ45 ethernet cable assemblies, to connect devices or projects to a network. It is commonly employed where a hardwired network connection is necessary or in server racks. This standardised RJ45 connector is commonly used in:

• Modems


• PC and Laptop computers


• Smart televisions


• Network cable installations

Standards and Certifications:

• ISO 11801 Ed2 and EIA/TIA 568-C.2 performance

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.

RS PRO Datasheet

Cable Selection Guide
