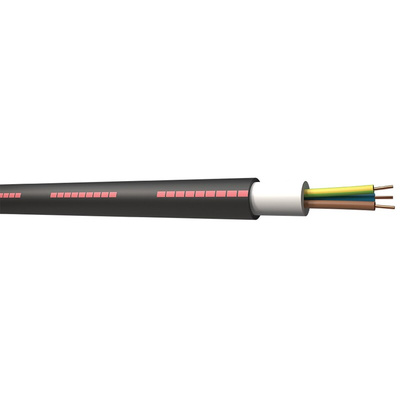

RS PRO 3 Core Power Cable, 2.5 mm², 100m, Black PVC Sheath, U1000RO2V, 16 A, 0.6/1 kV

2010591
Производитель: RS PRO
Цена за 1 катушку (100 метров)
110537.70 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

RS PRO Multicore Cable

Introducing the range of RS PRO multicore cables, ideal for use across a wide variety of industrial sites and upright column applications, with the black outer sheath being suitable for outdoor use. The flexible cable has a multicore that can be used for reliable cable connections in a neat and well-organised layout. By using this RS PRO high quality range of multicore cables, tripping hazards can be drastically reduced while improving the overall appearance of electrical equipment, especially in areas where there is little space, or the cable installation is visible to individuals.

Features and Benefits:

  • This RS PRO multicore cable has 3 2.5 mm² core strands which is ideal for using on industrial sites and upright column installations with the black outer sheath offering protection when the cable is being used outdoors

  • It is a flexible cable with a durable PVC protective sheath that is UV resistant and XLPE wrapped stranded bare copper conductors

  • The cable offers good insulation due to the insulation material and installation is easy and efficient thanks to the coloured cores and layout of the cable

  • Operating temperature: -20 °C to +70 °C

  • Rated voltage: 600 / 1000 V

Applications:

Multicore cables are electrical cables that have more cores than standard power or coaxial cables and are available in various lengths and cores, dependent on the applications they are being used for. They are ideal for using when there is little space or for organising cable installations that require multiple cabling connections, especially within industrial or entertainment applications. Multicore cables are found in many different environments, for example:

  • Entertainment and audio industry

  • Machines and factory control equipment

  • Large control pads

  • DIN-Rail terminals

  • Conveyor belts

  • Data and networking

  • Security and safety

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.

Note:

Please be aware, although these cables are electrical, they are not to be regarded as power cables, or cables for the direct connection of equipment to mains power supplies.

Техническая спецификация
pdfRS PRO Datasheet
pdfCable Selection Guide
pdfRS PRO Wiring and Connectivity Selection Guide 2021
Американский размер проводов:
13 AWG
Бронированность:
Нет
Внешний диаметр:
10.9мм
Встречающиеся стандарты:
Eca EN50575
Длина:
100м
Кабель - тип:
U1000RO2V
Кабельные формы:
Multi-Conductor
Количество нитей:
1
Количество ядер:
3
Материал изоляции:
XLPE
Материал оболочки:
ПВХ
Материал проводника:
Голая медь
Номинал тока:
16 A
Номинальное напряжение:
0.6/1 kV
Площадь поперечного сечения:
2.5 мм²
Рабочая температура - максимальная:
+70°C
Рабочая температура - минимальная:
-20°C
Серия:
U1000RO2V
Сертификация CPR:
Eca
Тип проводника:
Solid
Характеристика горения:
Flame Retardant
Цвет оболочки:
Черный
