6EP4438-7EB00-3DX0, Siemens Selectivity Module, SITOP Series

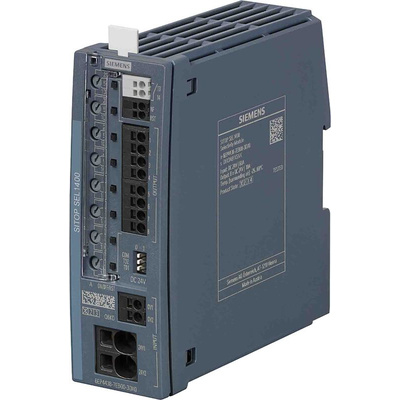

Siemens Selectivity Module, 8-Channel Output, IP20 Rating - SITOP Series - 6EP4438-7EB00-3DX0

Want a power distribution solution with built-in breaking? Opt for this selectivity module from Siemens. It divides and distributes power from a 24V DC PSU to provide up to eight output channels for your sensors or actuators. This makes it a practical pick for industrial automation and process control applications. As a limiting device, it trips any of these eight individual circuits in case of short-circuit or overload faults. This prevents equipment damage and also helps to minimise system downtime, as current or voltage errors are limited to a single circuit.

Features & Benefits

• IP20 rating means it's safe to touch during installation or maintenance
• Operating temperature range between -25°C and +70°C makes it a safe bet in harsh settings
• Convenient DIP switch lets you set delay times for applications where you need to connect sequentially or for load optimisation
• LED indicators let you check on status at a glance

Can I set the tripping range for this module?

Yes. A handy potentiometer on the front of the unit makes it easy to set the tripping range between 2 and 10A to suit your connected equipment.

6EP4438-7EB00-3DX0 Datasheet EN

Manual - 6EP4438-7EB00-3DX0

Instruction Sheet - 6EP4438-7EB00-3DX0

Catalogue - SITOP Power Supply
