M/163/50, Norgren Air Reservoir 500 ml, G 1/8, M/163 Series, 10bar

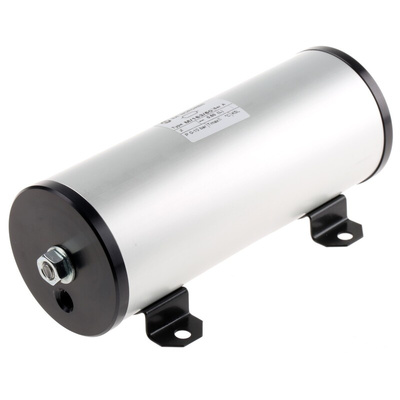

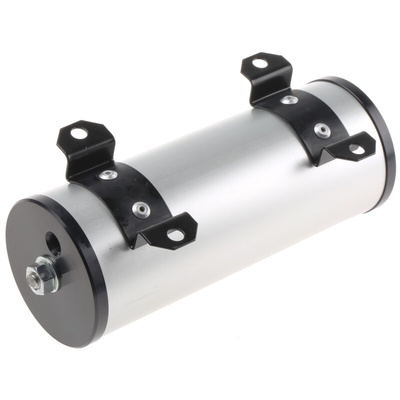

IMI Norgren Air Reservoir, 0.5L Volume, 0 to 10 Bar Operating Pressure - M/163 Series - M/163/50

Achieve optimal performance of your pneumatic systems with this air reservoir from IMI Norgren. It helps you control airflows in delay circuit operations by storing compressed air and releasing it at a predetermined point. The unit works with a flow regulator to protect your downstream equipment from pressure fluctuations. This also increases the power of actuators for quicker start and stop responses for the effective functioning of your applications. Pre-drilled brackets on the air reservoir make installation easy and mean you won't need extra parts.

Features & Benefits

• Operating pressures between 0 and 10 bar for use in low-pressure and high-pressure systems
• Broad operating temperature range of -20°C to +80°C for use in demanding environments

Applications

• Industrial compressors
• Medical equipment
• HVAC systems
• Robotic applications
• Chemical manufacturing plants

What does a repeat accuracy of 5% mean?

It means this air reservoir continuously and accurately repeats the storage and release of compressed air with a possible 5% performance variance.

How do I choose the right air reservoir?

The bore, pressure range and operating temperatures must match the demands of your application. Also, make sure the size of the port connection suits your system.

Air Reservois M/163 & M/164
