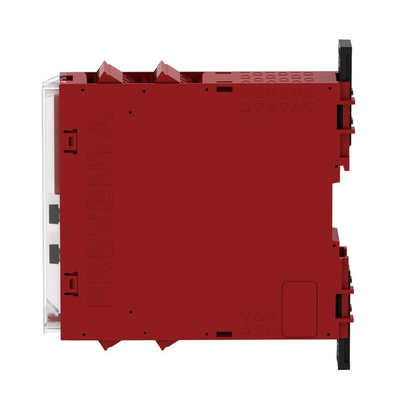

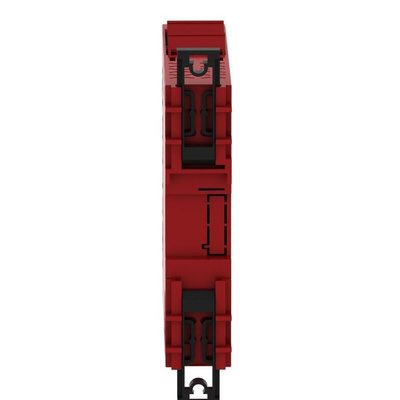

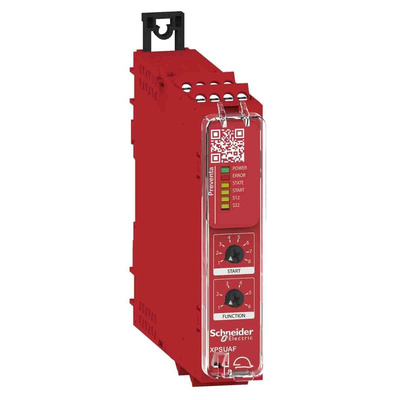

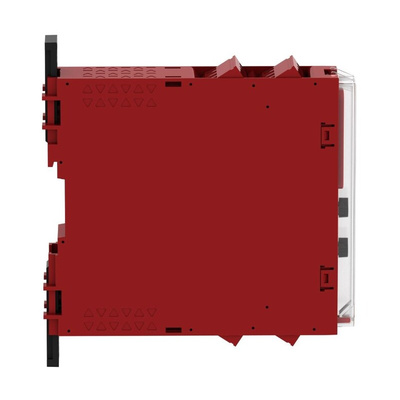

XPSUAF33AP, Schneider Electric Single-Channel Emergency Stop Safety Relay, 48 → 230V ac/dc, 5 Safety Contacts

Schneider Electric Preventa Range of Safety Relays - XPS Universal Range

The XPSUAF range of safety relay modules is used for providing protection for both the user and the machine through immediately stopping the dangerous movement when instructed to do so from the user or if there is the detection of a problem within the safety circuit. These types of safety relays are predominantly used for monitoring applications such as:
• Monitoring Emergency stop circuits
• Switches activated by protection devices
• Mechanical guard switches
• Magnetic switch with antivalent or 2 NC contacts
• Proximity safety switch with antivalent contacts
• PNP sensor
• RFID safety switch
• Type 4 light curtains

Features & Benefits

• The start function can be configured by selector switches on the front face
• A solid-state diagnostic output with complete status information facilitates maintenance
• To monitor a higher number of antivalent contacts using this safety module, the antivalent contacts can be connected with a NC in series and NO in parallel

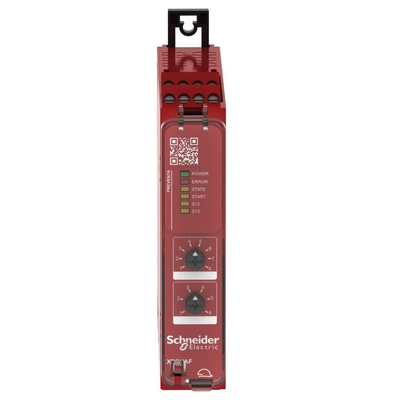

• 6 LEDs on the front face provide information on the monitoring circuit status
• 16 terminals with a safe expansion connection
• Removable terminal blocks for the connection type
• Automatic, manual and monitored starts
• 2 safety inputs with 3 NO outputs
• The control outputs are 3NO/OFF - configurable pulsed outputs

Schneider Electric Preventa Safety Module - XPSUAF33AP

• Safety levels for the relay include: Can reach PL e/category 4 conforming to ISO 13849-1, Can reach SILCL 3 conforming to IEC 62061 and Can reach SIL 3 conforming to IEC 61508
• NC pair, PNP pair, Antivalent pair and OSSD pair electrical circuit type
• Forms part of the preventa safety automation range of products
• This relay has a rated supply voltage of 48...240 V AC/DC - 10...10 %
• The device has an internal and electronic input protection type
• Maximum response time on input open: 20ms
• Mounting support: 35mm symmetrical DIN rail
• Rated insulation voltage: 250V
