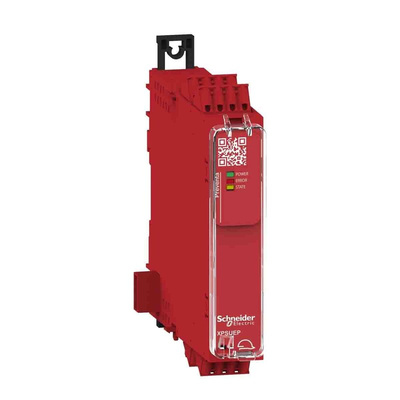

XPSUEP14AC, Schneider Electric Single-Channel Emergency Stop Monitoring Safety Relay, 24V ac/dc, 5 Safety Contacts

Schneider Electric Preventa Range of Safety Relays - XPS Universal Range

The XPSUEP range of safety modules have been created and designed to extend the number of safety output contacts for the XPS Universal safety modules.

These modules are available in addition to base modules such as emergency stop, limit switch, two-hand control and much more. When using the XPSUAT as a base module, the configuration is used to choose whether the XPSUEP's outputs follow the XPSUAT's immediate or time delay outputs.

Features & Benefits

• 3 LEDs on the front face provide information on the monitoring circuit status
• The start input follows the host modules
• Zero safety inputs, extension bus
• 4 NO + 2 single NC safety outputs
• The connection is achieved via the base module by connector
• 1 solid-state diagnostic output with complete status information
• Removable terminal blocks for the connection type
• 16 terminals

Schneider Electric Preventa Safety Module - XPSUEP14AC

• Forms part of the Preventa Safety automation range of products
• Predominantly used for extending the number of safety contacts
• Safety levels: Can reach PL e/category 4 for normally open relay contact conforming to ISO 13849-1, Can reach SILCL 3 for normally open relay contact conforming to IEC 62061, Can reach SIL 3 for normally open relay contact conforming to IEC 61508, Can reach PL c/category 1 for normally closed relay contact conforming to ISO 13849-1, Can reach SILCL 1 for normally closed relay contact conforming to IEC 62061 and Can reach SIL 1 for normally closed relay contact conforming to IEC 61508
• Has a rated supply voltage of 24 V AC - 15...10 % and 24 V DC - 20...20 %
• Internal and electronic input protection type
• Input compatibilities are: Normally closed circuit, XC limit switch, Mechanical contact, Normally closed circuit, Antivalent pair, OSSD pair and 3-wire proximity sensors
• Power consumption:1.5W 24V DC
• Safety outputs:4 NO redundant, 2 NC single
• Conventional free air thermal current:8A
