Pico Technology PQ217 Probe Holder, For Use With Picoscope 6000E

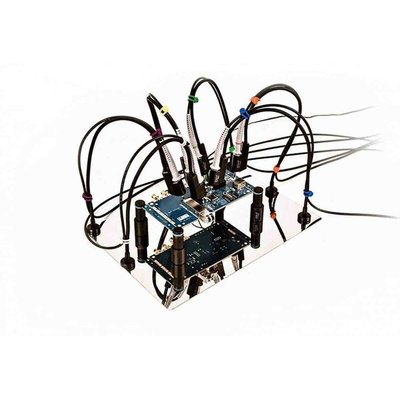

The Pico Technology PQ217 probe holder and PCB holder kit is a valuable accessory for any BNC-input oscilloscope up to 500 MHz bandwidth. It has been designed exclusively for use with the range of 2.5 mm probes from Pico, of which four P2056 500 MHz probes are included in this kit. Also included in the kit is an A4-sized (about 9" x 11") steel base plate, four PCB holders, four probe holders, and eight colored elastic cable ties.

Your PCB is fixed into place with four powerful magnetic posts employing spring-loaded clamps to grip the PCB under test. The clamps use a pair of replaceable insulating washers to avoid shorting tracks on the PCB.

With strong magnets at their base, the four gooseneck probe holders offer a flexible way to position the probe tip while holding it firmly poised in place. Their unique design employs a precisely weighted probe holder that pushes the sprung probe tip just enough to make a good contact on your PCB or unit under test.

Features and benefits

The base plate provides the secure footing for your probe positioning system
It's mirror finished, allowing to see the underside of the PCB to view any status LEDs during test
The probe holders include eight pairs of elastic cable ties in the PicoScope channel colors

Supplied with/Kit contains:

Base plate
4 P2056 500 MHz probes
4 spring-loaded magnetic PCB holder
4 magnetic 2.5 mm oscilloscope probe holder
8 colored elastic cable ties

What other Probes are available in this Pico range?

Pico PQ215 probe holder kit without probes
Pico PQ217 Probe holder kit with 4 x P2056 500 MHz probes
Pico PQ219 8-channel probe holder kit for PicoScope 6000E Series

Datasheet - PQ217
