DPI705E-2-07G-P1-H0-U0-OP0, Druck DPI705E Gauge Manometer With 1 Pressure Port/s, Max Pressure Measurement 2bar

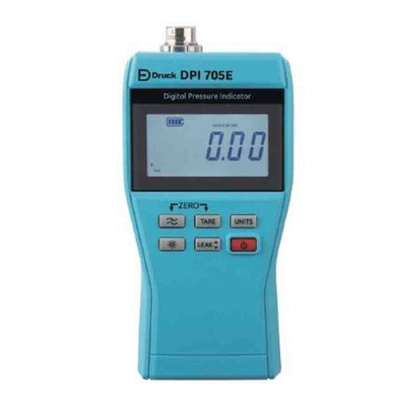

Druck DPI 705E Pressure and temperature indicator 2 bar gauge

The DPI 705E manometer provides accurate, reliable pressure and temperature monitoring in industrial and Hazardous area environments. Druck combines a tough, durable design for single-handed use with new and improved features to ensure even greater accuracy and reliable pressure or temperature monitoring during commissioning, fault finding, and system testing, including leak testing. An extensive pressure range from 25mbar to 1400bar in Absolute, Gauge or Differential configurations with enhanced accuracy, provides 12-month uncertainty up to 0.05% full scale (FS) over a temperature range of -10°C to +50°C.
The DPI 705E series also have integrated pressure sensors, designed to interface directly with external remote pressure or optional remote plug and-play Resistance Temperature Detector (RTD) sensors providing even more flexibility whilst out in the field. Each pressure sensor holds integral calibration data, meaning a single DPI 705E can be used with multiple remote sensors, allowing various ranges to be measured in seconds. The sensors hold a record of the calibration date, which is relayed to the operator through the ’calibration due’ countdown shown on the pressure indicator’s display. The power-efficient design means that the indicators can be used for eight hours per day, six days per week for one year using a single set of batteries.

Predecessor of the legacy DPI 705
20 Pressure Measurement units
Large backlit display
48 pressure ranges from +/- 25 mbar to 1,400 bar
Offering total 1 year uncertainty down to 0.05% FS
Temperature range of -10°C to +50°C
Leak test function, tate, maximum/minimum and filter
Optional plug-and-play pressure sensors
Long battery life
Available in commercial and intrinsically safe version

The DPI 705E series can be used across a wide range of applications as a complementary unit to calibrate DUTs or for high accurate pressure and temperature measurement in the field. The DPI705E can be used as a pressure or temperature reference from an external source for test and calibration. This enabling customers in varied applications to verify the presence and level of pressure during commissioning, fault finding and system testing (including leak testing) and monitor/record pressure readings. Key industries include:

Industries include:
Aerospace
Automotive
Electronic & Semiconductor
Food & Beverage
Marine
Meteorology
Oil & Gas
Other industries
Pharmaceutical
Power & Energy
Water & Wastewater

Note

Why choose Druck?
What began in 1972 as a small business in Leicester, UK, Druck has grown into a global pressure-measurement business recognised as a world leader, delivering high quality piezo-resistive pressure sensors and test and calibration instruments to a wide range of applications for customers across the globe.
Druck is one of the only organisations to control the whole manufacturing process from silicon to final product. All products are high-quality, developed from the in-house (UK), raw processing of silicon to delivering the final product.
With Druck, you can be sure of quality, accuracy and reliability. We are Druck. We deliver peace of mind.

Datasheet DPI-705E Series
