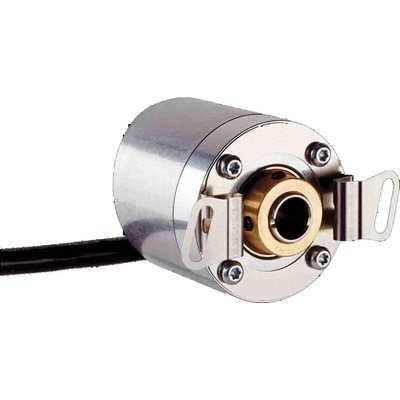

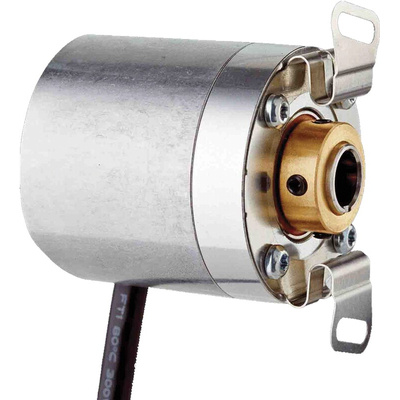

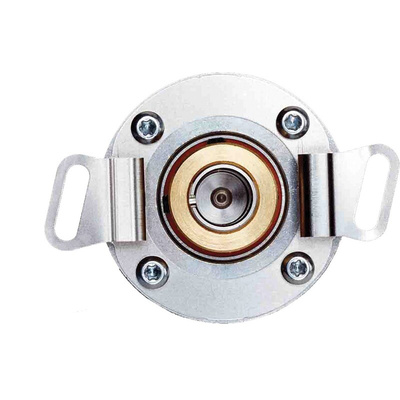

DBS36E-BBEK01024, Sick Incremental Incremental Encoder, 1024 ppr, HTL Signal, Blind Hollow Type, 8mm Shaft

This SICK HTL DBS36 Incremental encoder provides a compact, robust and easy to install solution for many Speed and Position applications. Providing 1024ppr at its output the 1.5m long cable can be routed axially or radially to suit the installation conditions. The encoder has an 8mm hollow shaft which can be reduced to 6mm using collet accessory 2013656. The encoder stator coupling has slots to enable flexible mounting on a pcd ranging from 42 - 46mm . A wide operating temperature range of -20 to +85 deg C and IP65 protection ensures reliable operation even in harsh operating conditions.

Operating current is = 50 mA
Supply voltage 7 to 30V
Output frequency is = 300 kHz

DataSheet - DBS36E-BBEK01024
