DBV50E-22AKB2000, Sick Linear Measuring Linear Measuring Encoder, 2000 ppr, TTL Signal, Measuring Wheel Type

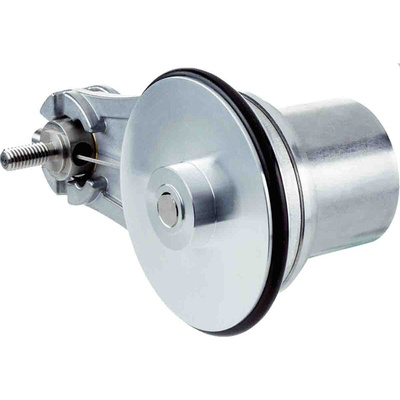

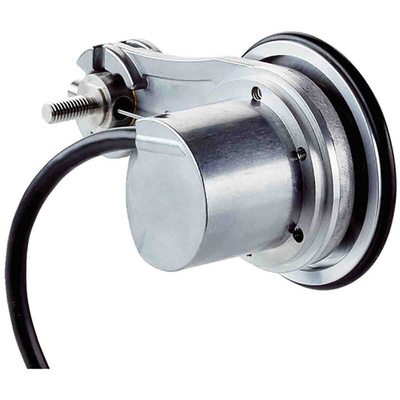

This SICK Measuring Wheel encoder combines a robust incremental encoder, NBR70 Measuring Wheel and Spring assembly in an easy to mount and adjust solution for linear measurement tasks. To simplify mounting further an L-Bracket is available 201-3666. The encoder has a linear resolution of 0.1mm with a TTL output and 4.5 - 5.5V dc power supply. The 1.5m long cable used for the electrical connection can be routed in different directions to suit the application. The unit is sealed to IP65 enabling use in most industrial environments.

Measuring step deviation is ± 18°/pulses per revolution
Its Supply voltage is 4.5 V to 5.5 V
Operating power consumption (no load) is 50 mA

DataSheet - DBV50E-22AKB02000
