Schmersal AZ/AZM 415-B3, Standard Actuator for AZ 415 Safety Switch

AZM415, Two Switches in One

Two switches in one enclosure
Manual release in the case of power failure - see accessories for M5 release key
Power to unlock
Adjustable ball latch to 500N
Contact Rating of 4 A (230 Vac)
IP67

Note

Actuating key not included

Caution

EN60947-5-1 standard is only met if entire system consisting of safety sensor (AZM415), actuator (AZM415) and a safety monitoring module (AES) is used.

Standards

IEC/EN60947-5-1, BG-GS-ET-19

Approvals

BG, UL, CSA

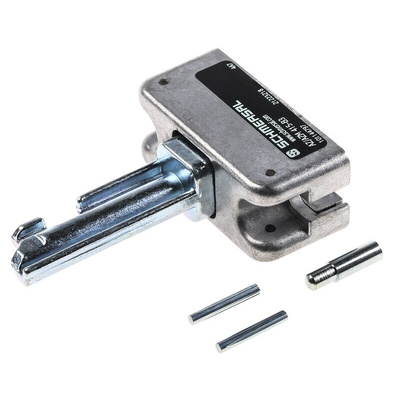

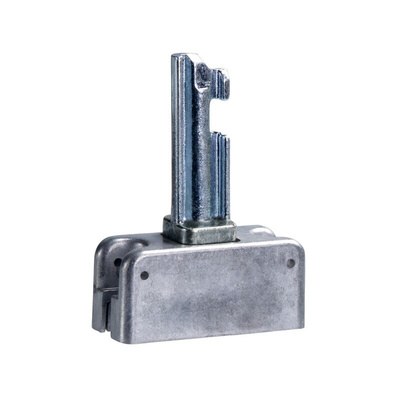

Schmersal Actuator for AZ 415 Safety Switch, Flexible, 250mm Actuating Radius - AZ/AZM 415-B3

Looking for a way to reduce risks when operating your equipment? Use this Schmersal actuator with your AZ 415 safety switches to close and open electrical connections that start and power machinery. The key is designed to stop the unintentional startup of machinery when hinged guards are not properly in place. This minimises the risk of injury to personnel and prevents damage to equipment. Use it with safety switches in a range of industrial and commercial applications involving hinged guards.

Features & Benefits

• Rugged steel construction for durability and resistance to impact and corrosion for use in harsh environments
• Compliance with IEC/EN 60947-5-1 (International Electrotechnical Commission/European Standards) means the product has passed rigorous quality and safety tests for low-voltage switch and control gear

Applications

• Safety guards on industrial machinery
• Automated controls on fire doors

How do I install this actuator?

The actuator has pre-drilled holes for custom installation with the AZ 415 safety switch. It also includes the necessary fasteners and pins, so you can install it quickly and securely.
