0804051, Phoenix Contact Mains Sockets, 13A, DIN Rail, 250 V

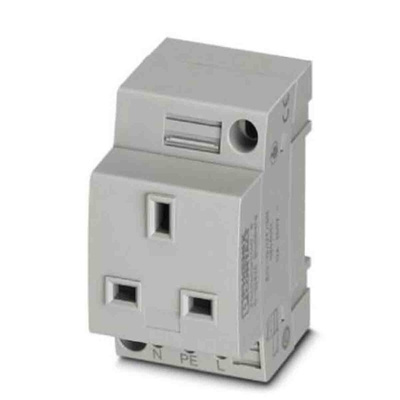

Phoenix Contact Mains Socket, 250V, 13A - EO-G/UT/SH - 0804051

Use this mains socket from Phoenix Contact to provide power to electrical appliances in both domestic and industrial environments. The component has compact dimensions of 45 (W) by 75 (H) and 57.5 (D), so it's suited for setups with limited space. It features contacts made of highly conductive copper and zinc material, giving you a dependable connection. For electrical safety, it also has polyamide (PA) insulation material, so the chance of electric shocks is minimised.
This device has an Underwriters' Laboratory (UL) rating of UL94V-0, meaning it's self-extinguishing and will reduce damage in the event of a fire. It can also operate efficiently in a wide temperature range from -20°C to +60°C, so you can use it in extreme environmental conditions. The socket's current rating of 13A and voltage rating of 250V make it a suitable power solution for both medium power industrial equipment and domestic applications.

Features & Benefits

• Light weight of 85.83g for easy handling
• Can either be DIN or wall mounted for flexibility of use
• Screw termination method is quick, easy and doesn't need any specialist tools

Datasheet - 804051

Instruction Sheet - 0804051
