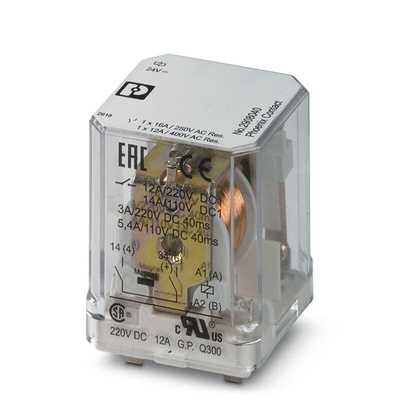

2908040, Phoenix Contact PCB Mount Power Relay, 24V dc Coil, 16A Switching Current, SPST

Phoenix Contact Non-Latching Relay Module, SPNO - REL-PR1-24DC/1/MB - 2908040

Choose this plug-in relay from Phoenix Contact for switching high DC loads in household appliances, industrial machinery and telecommunications equipment. The unit can be mounted onto a PCB (printed circuit board), so it's particularly useful in modular electromechanical systems.
This single relay uses silver-alloy contacts that offer good conductivity and good resistance to corrosion. A blowout magnet ensures that the switching arc is safely directed away during operation.
The unit works efficiently in a temperature range of -40°C to +70°C, making it suitable for use in tough industrial settings. A service life of 20 million cycles means you can be confident of durability and minimal maintenance.

• SPNO (single pole, normally open) contact configuration
• Coil power of 1.68 W
• Coil voltage of 24 V DC
• Switching current of 0.005 A
• Isolation coil to contact of 2.5 kV
• Typical input current of 70 mA
• Typical response time of 20 ms
• Typical release time of 15 ms
• Power dissipation of 1.6 W for nominal condition
• Dimensions of 38.6 (width) x 36.1 (height) x 45.5 mm (depth)
